DF13B-4P-1.25V(75)
LTBHirose Electric USA, Inc.

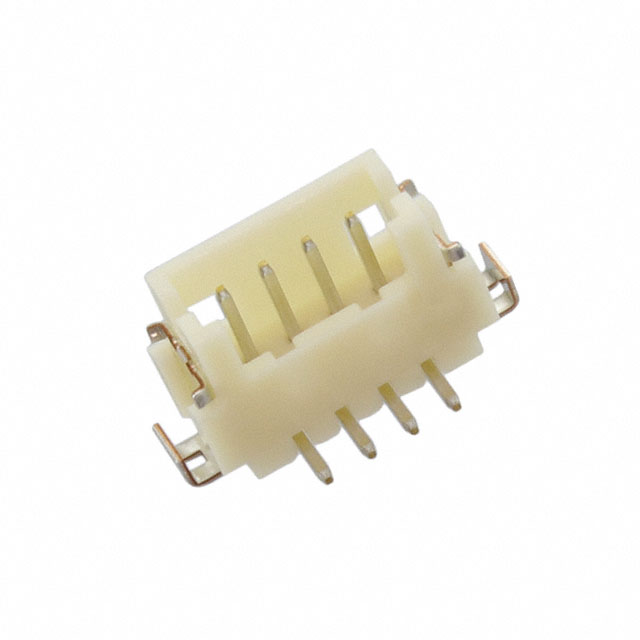

CONN HEADER SMD 4POS 1.25MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DF13B-4P-1.25V(75)
LTBHirose Electric USA, Inc.
CONN HEADER SMD 4POS 1.25MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DF13B-4P-1.25V(75) |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Finish Thickness - Mating | 1 µm |
| Contact Finish Thickness - Mating | 39.4 µin |
| Contact Finish Thickness - Post | 1 çm |
| Contact Finish Thickness - Post | 39.4 çin |
| Contact Material | Brass |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Detent Lock |
| Features | Solder Retention, Board Guide |
| Insulation Color | Beige |
| Insulation Height | 4.8 mm |
| Insulation Height | 0.189 in |
| Insulation Material | Polyamide (PA), Nylon |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -35 °C |
| Pitch - Mating | 1.25 mm |
| Pitch - Mating | 0.049 in |
| Shrouding | Shrouded - 3 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
| Voltage Rating | 150 VDC |
DF13B Series
| Part | Contact Type | Pitch - Mating | Pitch - Mating | Contact Shape | Insulation Height | Insulation Height | Insulation Material | Material Flammability Rating | Number of Rows | Contact Finish - Mating | Number of Positions Loaded | Shrouding | Contact Material | Fastening Type | Features | Operating Temperature [Min] | Operating Temperature [Max] | Termination | Insulation Color | Voltage Rating | Contact Finish Thickness - Mating | Contact Finish Thickness - Mating | Connector Type | Style | Contact Finish - Post | Contact Finish Thickness - Post | Contact Finish Thickness - Post | Mounting Type | Mated Stacking Heights | Number of Positions |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | Gold | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 0.203 Ám | 8 Áin | Header | Board to Cable/Wire | Gold | 8 µin | 0.203 µm | Surface Mount | ||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | Gold | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 0.76 Ám | 30 Áin | Header | Board to Cable/Wire | Surface Mount | 5.8 mm | 8 | |||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 1 µm | 39.4 µin | Header | Board to Cable/Wire | Tin | 39.4 çin | 1 çm | Surface Mount | 4 | ||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | All | Shrouded - 3 Wall | Brass | Detent Lock | Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VAC | 1 µm | 39.4 µin | Header | Board to Cable/Wire | Tin | 39.4 çin | 1 çm | Surface Mount | 7 | ||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | Gold | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 0.76 Ám | 30 Áin | Header | Board to Cable/Wire | Surface Mount | 5.8 mm | ||||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | Gold | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 0.203 Ám | 8 Áin | Header | Board to Cable/Wire | Surface Mount | 5.8 mm | 4 | |||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | Gold | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 0.203 Ám | 8 Áin | Header | Board to Cable/Wire | Surface Mount | 5.8 mm | 15 | |||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | Gold | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 0.203 Ám | 8 Áin | Header | Board to Cable/Wire | Surface Mount | 5.8 mm | ||||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 1 µm | 39.4 µin | Header | Board to Cable/Wire | Tin | 39.4 çin | 1 çm | Surface Mount | 10 | ||
Hirose Electric USA, Inc. | Male Pin | 1.25 mm | 0.049 in | Square | 4.8 mm | 0.189 in | Nylon Polyamide (PA) | UL94 V-0 | 1 | Gold | All | Shrouded - 3 Wall | Brass | Detent Lock | Board Guide Solder Retention | -35 °C | 85 °C | Solder | Beige | 150 VDC | 0.203 Ám | 8 Áin | Header | Board to Cable/Wire | Surface Mount | 5.8 mm | 7 |
