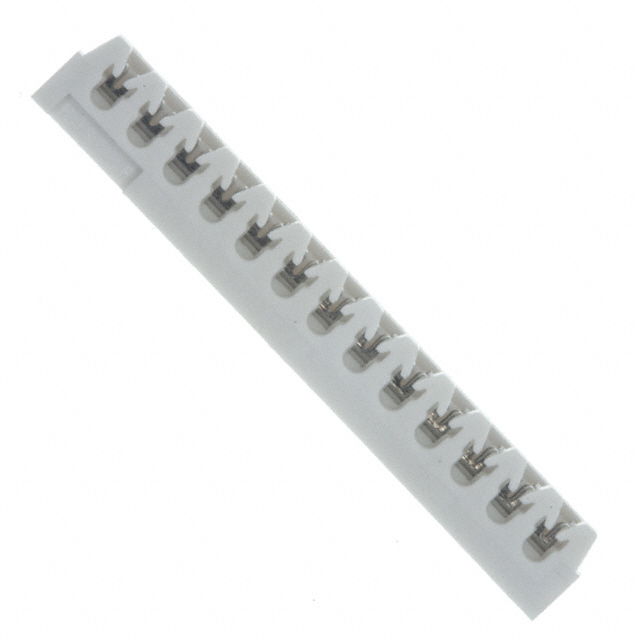

13ZR-3H-P
ActiveJST Sales America Inc.
CONN RCPT 13POS IDC 30AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
13ZR-3H-P
ActiveJST Sales America Inc.
CONN RCPT 13POS IDC 30AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 13ZR-3H-P |
|---|---|
| Cable Termination | IDC |
| Color | Natural |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Pitch [x] | 1.5 mm |
| Pitch [x] | 0.059 in |
| Wire Gauge | 30 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 2000 | $ 0.43 | |
Description
General part information
13ZR Series
13 Position Rectangular Receptacle Connector IDC Tin 30 AWG
