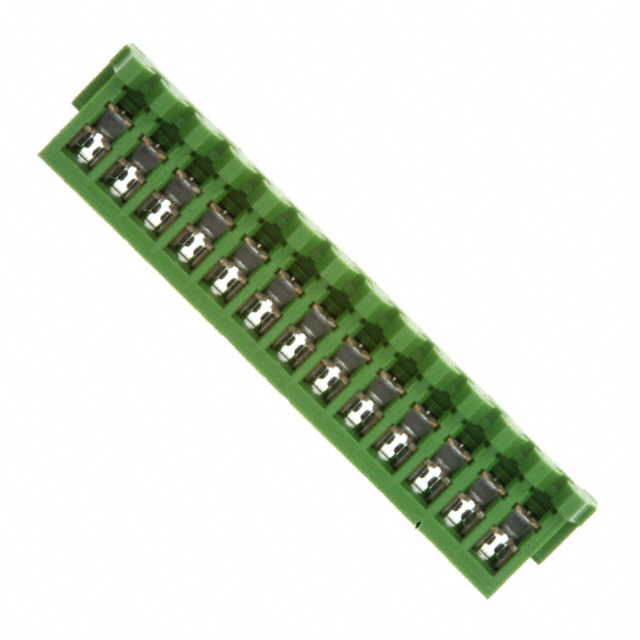

13ZR-8M-P(P)
ObsoleteJST Sales America Inc.
CONN RCPT 13POS IDC 28AWG TIN
Deep-Dive with AI
Search across all available documentation for this part.
13ZR-8M-P(P)
ObsoleteJST Sales America Inc.
CONN RCPT 13POS IDC 28AWG TIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 13ZR-8M-P(P) |
|---|---|
| Cable Termination | IDC |
| Color | Green |
| Connector Type | Receptacle |
| Contact Finish | Tin |
| Contact Type | Female Socket |
| Features | Closed End |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 13 |
| Number of Rows | 1 |
| Pitch [x] | 1.5 mm |
| Pitch [x] | 0.059 in |
| Wire Gauge | 28 AWG |
| Wire Type | Discrete |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
13ZR Series
13 Position Rectangular Receptacle Connector IDC Tin 28 AWG
