RM12BRB-6S(81)

Active

Hirose Electric USA, Inc.

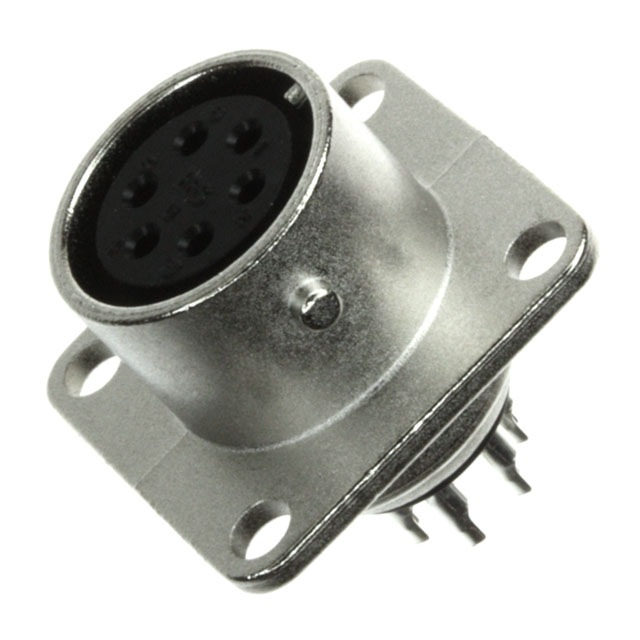

CONN RCPT FMALE 6P SOLDER CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM12BRB-6S(81)

Active

Hirose Electric USA, Inc.

CONN RCPT FMALE 6P SOLDER CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM12BRB-6S(81)

Color	Silver
Connector Type	Receptacle, Female Sockets
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	196.9 µin
Contact Finish Thickness - Mating	5 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Insert Material	Polyphenylene Sulfide (PPS)
Material Flammability Rating	UL94 V-0
Mounting Feature	Flange
Number of Positions	6
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12
Voltage Rating	350 VAC, 490 VDC

RM12BR Series

Part	Material Flammability Rating	Connector Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Finish	Current Rating (Amps)	Number of Positions	Mounting Feature	Color	Primary Material	Voltage Rating	Shell Size - Insert	Contact Material	Orientation	Fastening Type	Shell Material	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. RM12BRB-4S	UL94 V-0	Receptacle Female Sockets	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A	4	Flange	Silver	Metal	500 VAC 700 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy
Hirose Electric USA, Inc. RM12BRB-3S(81)	UL94 V-0	Receptacle Female Sockets	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A		Flange	Silver	Metal	500 VAC 700 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy	Unshielded
Hirose Electric USA, Inc. RM12BRD-5PH(71)	UL94 V-0	Male Pins Receptacle	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A		Bulkhead - Rear Side Nut	Silver	Metal	350 VAC 490 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy		78.7 µin	2 µm
Hirose Electric USA, Inc. RM12BRB-6S(81)	UL94 V-0	Receptacle Female Sockets	Polyphenylene Sulfide (PPS)	-25 °C	85 °C	Silver	Nickel	5 A	6	Flange	Silver	Metal	350 VAC 490 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy		196.9 µin	5 µm
Hirose Electric USA, Inc. RM12BRD-3PH		Male Pins Receptacle		-25 °C	85 °C			5 A		Bulkhead - Rear Side Nut			500 VAC 700 VDC	12		Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12BRB-6S		Receptacle Female Sockets		-25 °C	85 °C			5 A	6	Flange			350 VAC 490 VDC	12		Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12BRD-7S		Receptacle Female Sockets		-25 °C	85 °C			5 A	7	Bulkhead - Rear Side Nut			350 VAC 490 VDC	12		Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12BRD-3PH(71)	UL94 V-0	Male Pins Receptacle	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A		Bulkhead - Rear Side Nut	Silver	Metal	500 VAC 700 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy		78.7 µin	2 µm
Hirose Electric USA, Inc. RM12BRD-3S(71)	UL94 V-0	Receptacle Female Sockets	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A		Bulkhead - Rear Side Nut	Silver	Metal	500 VAC 700 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy		196.9 µin	5 µm
Hirose Electric USA, Inc. RM12BRD-2S(81)	UL94 V-0	Receptacle Female Sockets	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A	2	Bulkhead - Rear Side Nut	Silver	Metal	600 VAC 840 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy	Unshielded
