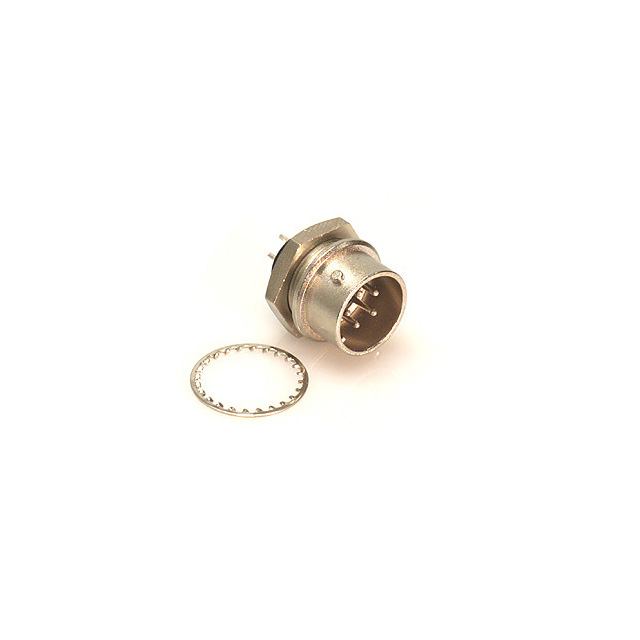

RM12BRD-5PH(71)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 5P SILV SLDR CUP

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

RM12BRD-5PH(71)

Obsolete

Hirose Electric USA, Inc.

CONN RCPT MALE 5P SILV SLDR CUP

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RM12BRD-5PH(71)

Color	Silver
Connector Type	Receptacle, Male Pins
Contact Finish - Mating	Silver
Contact Finish Thickness - Mating	78.7 µin
Contact Finish Thickness - Mating	2 µm
Contact Material	Copper Alloy
Current Rating (Amps)	5 A
Fastening Type	Bayonet Lock
Insert Material	Diallyl Phthalate (DAP)
Material Flammability Rating	UL94 V-0
Mounting Feature	Bulkhead - Rear Side Nut
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-25 °C
Orientation	Keyed
Primary Material	Metal
Shell Finish	Nickel
Shell Material	Zinc Alloy
Shell Size - Insert	12
Voltage Rating	350 VAC, 490 VDC

RM12BR Series

Part	Material Flammability Rating	Connector Type	Insert Material	Operating Temperature [Min]	Operating Temperature [Max]	Contact Finish - Mating	Shell Finish	Current Rating (Amps)	Number of Positions	Mounting Feature	Color	Primary Material	Voltage Rating	Shell Size - Insert	Contact Material	Orientation	Fastening Type	Shell Material	Shielding	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating
Hirose Electric USA, Inc. RM12BRB-4S	UL94 V-0	Receptacle Female Sockets	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A	4	Flange	Silver	Metal	500 VAC 700 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy
Hirose Electric USA, Inc. RM12BRB-3S(81)	UL94 V-0	Receptacle Female Sockets	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A		Flange	Silver	Metal	500 VAC 700 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy	Unshielded
Hirose Electric USA, Inc. RM12BRD-5PH(71)	UL94 V-0	Male Pins Receptacle	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A		Bulkhead - Rear Side Nut	Silver	Metal	350 VAC 490 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy		78.7 µin	2 µm
Hirose Electric USA, Inc. RM12BRB-6S(81)	UL94 V-0	Receptacle Female Sockets	Polyphenylene Sulfide (PPS)	-25 °C	85 °C	Silver	Nickel	5 A	6	Flange	Silver	Metal	350 VAC 490 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy		196.9 µin	5 µm
Hirose Electric USA, Inc. RM12BRD-3PH		Male Pins Receptacle		-25 °C	85 °C			5 A		Bulkhead - Rear Side Nut			500 VAC 700 VDC	12		Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12BRB-6S		Receptacle Female Sockets		-25 °C	85 °C			5 A	6	Flange			350 VAC 490 VDC	12		Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12BRD-7S		Receptacle Female Sockets		-25 °C	85 °C			5 A	7	Bulkhead - Rear Side Nut			350 VAC 490 VDC	12		Keyed	Bayonet Lock
Hirose Electric USA, Inc. RM12BRD-3PH(71)	UL94 V-0	Male Pins Receptacle	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A		Bulkhead - Rear Side Nut	Silver	Metal	500 VAC 700 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy		78.7 µin	2 µm
Hirose Electric USA, Inc. RM12BRD-3S(71)	UL94 V-0	Receptacle Female Sockets	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A		Bulkhead - Rear Side Nut	Silver	Metal	500 VAC 700 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy		196.9 µin	5 µm
Hirose Electric USA, Inc. RM12BRD-2S(81)	UL94 V-0	Receptacle Female Sockets	Diallyl Phthalate (DAP)	-25 °C	85 °C	Silver	Nickel	5 A	2	Bulkhead - Rear Side Nut	Silver	Metal	600 VAC 840 VDC	12	Copper Alloy	Keyed	Bayonet Lock	Zinc Alloy	Unshielded

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Description

General part information

RM12BR Series

5 Position Circular Connector Receptacle, Male Pins Solder Cup
