RG125-19/06

Active

ebm-papst Inc.

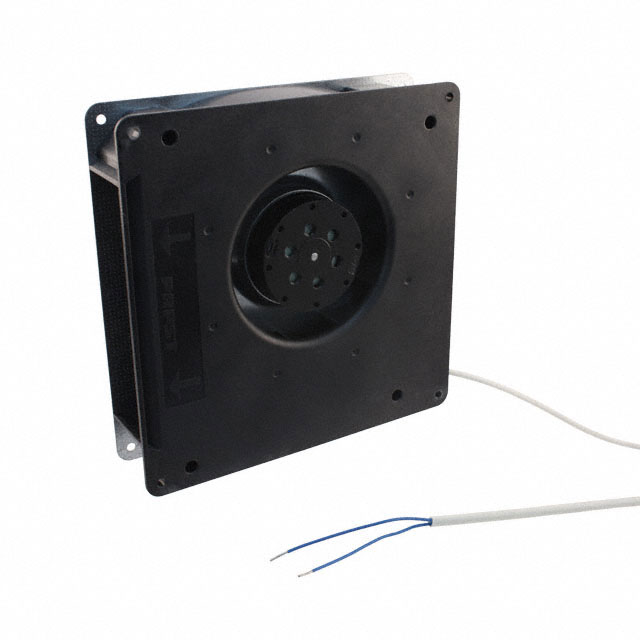

FAN BLWR FLATPAK 180X40MM 115VAC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet +1

RG125-19/06

Active

ebm-papst Inc.

FAN BLWR FLATPAK 180X40MM 115VAC

Deep-Dive with AI

DocumentsCompact Fans for AC, DC, and EC Catalog Datasheet +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	RG125-19/06

Air Flow	1.55 m³/min
Air Flow	55.3 CFM
Approval Agency	UL, CE, VDE, CSA
Bearing Type	Ball
Fan Type	Blower, Flatpak
Lifetime @ Temp.	40000 Hrs
Material - Blade	Plastic, Fiberglass Reinforced
Material - Frame	Polybutylene Terephthalate (PBT), Fiberglass Reinforced
Noise	60 dB(A)
Power (Watts)	19 W
RPM	2750 RPM
Size / Dimension	Square
Size / Dimension [x]	180 mm
Size / Dimension [y]	180 mm
Termination	2 Wire Leads
Voltage - Rated	115 VAC
Weight	907.2 g
Weight	2 lbs
Width [y]	40 mm

RG125 Series

Part	Termination	Voltage - Rated	Weight	Weight	Ingress Protection	Material - Frame	Bearing Type	Fan Type	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Width [y]	Features	Power (Watts)	Air Flow	Air Flow	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Max]	Operating Temperature [Min]	RPM	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension	Material - Blade	Noise	Approval Agency	Operating Temperature [Min] [custom]	Operating Temperature [Min] [custom]	Operating Temperature [Max] [custom]	Operating Temperature [Max] [custom]
ebm-papst Inc. RG125-19/12N/12	3 Wire Leads	12 VDC	725.7 g	1.6 lbs	IP54 - Dust Protected Water Resistant	Steel	Ball	Blower Centrifugal	7 V	15 V	105000 Hrs	40 mm	Speed Sensor (Tach)	5.2 W	51.5 CFM	1.44 m³/min	-30 ░C	75 ░C	75 °C	-30 °C	2550 RPM	180 mm	180 mm	Square
ebm-papst Inc. RG125-19/12NM	2 Wire Leads	12 VDC	725.7 g	1.6 lbs		Glass Filled Plastic	Ball	Blower Centrifugal	7 V	15 V	70000 Hrs	40 mm		2 W	35.3 CFM	0.988 mł/min	-30 ░C	75 ░C	75 °C	-30 °C	1750 RPM	180 mm	180 mm	Square	Plastic Fiberglass Reinforced	48 dB
ebm-papst Inc. RG125-19/06	2 Wire Leads	115 VAC	907.2 g	2 lbs		Polybutylene Terephthalate (PBT) Fiberglass Reinforced	Ball	Blower Flatpak			40000 Hrs	40 mm		19 W	55.3 CFM	1.55 m³/min					2750 RPM	180 mm	180 mm	Square	Plastic Fiberglass Reinforced	60 dB(A)	CE CSA UL VDE
ebm-papst Inc. RG125-19/56	2 Wire Leads	230 VAC	907.2 g	2 lbs		Glass Filled Plastic	Ball	Blower Flatpak			40 °C 37500 Hrs	40 mm		20 W	50.6 CFM	1.42 mł/min					2550 RPM	180 mm	180 mm	Square	Plastic Fiberglass Reinforced	60 dB(A)	CE CSA UL VDE	-30 °C	-22 °F	70 °C	158 °F
ebm-papst Inc. RG125-19/14N	2 Wire Leads	24 VDC	725.7 g	1.6 lbs		Glass Filled Plastic	Ball	Blower Centrifugal	12 VDC	28 VDC	62500 Hrs	40 mm		5 W	51.5 CFM	1.44 m³/min	-30 ░C	75 ░C	75 °C	-30 °C	2550 RPM	180 mm	180 mm	Square	Plastic Fiberglass Reinforced	58 dB(A)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 76.02
		10	$ 68.63

Description

General part information

RG125 Series

Fan Blower, Flatpak 115VAC Square - 180mm L x 180mm H Ball 55.3 CFM (1.55m³/min) 2 Wire Leads
