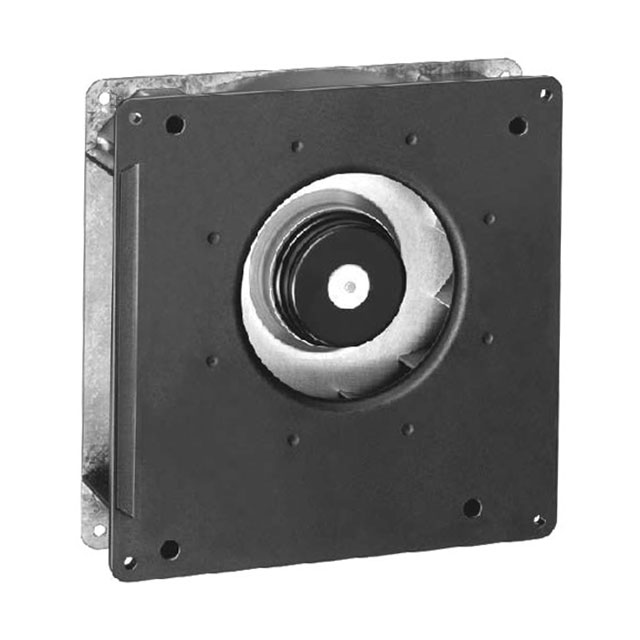

RG125-19/12N/12
Activeebm-papst Inc.
FAN BLOWER CF 180X40MM 12VDC
Deep-Dive with AI
Search across all available documentation for this part.
RG125-19/12N/12
Activeebm-papst Inc.
FAN BLOWER CF 180X40MM 12VDC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG125-19/12N/12 |
|---|---|
| Air Flow | 51.5 CFM |
| Air Flow | 1.44 m³/min |
| Bearing Type | Ball |
| Fan Type | Blower, Centrifugal |
| Features | Speed Sensor (Tach) |
| Ingress Protection | IP54 - Dust Protected, Water Resistant |
| Lifetime @ Temp. | 105000 Hrs |
| Material - Frame | Steel |
| Operating Temperature [Max] | 75 ░C |
| Operating Temperature [Max] | 75 °C |
| Operating Temperature [Min] | -30 ░C |
| Operating Temperature [Min] | -30 °C |
| Power (Watts) | 5.2 W |
| RPM | 2550 RPM |
| Size / Dimension | Square |
| Size / Dimension [x] | 180 mm |
| Size / Dimension [y] | 180 mm |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 15 V |
| Voltage Range [Min] | 7 V |
| Weight | 725.7 g |
| Weight | 1.6 lbs |
| Width [y] | 40 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 99.62 | |
| 10 | $ 88.81 | |||
| 25 | $ 84.84 | |||
| 50 | $ 81.95 | |||
| 100 | $ 79.16 | |||
Description
General part information
RG125 Series
Fan Blower, Centrifugal 12VDC Square - 180mm L x 180mm H Ball 51.5 CFM (1.44m³/min) 3 Wire Leads
