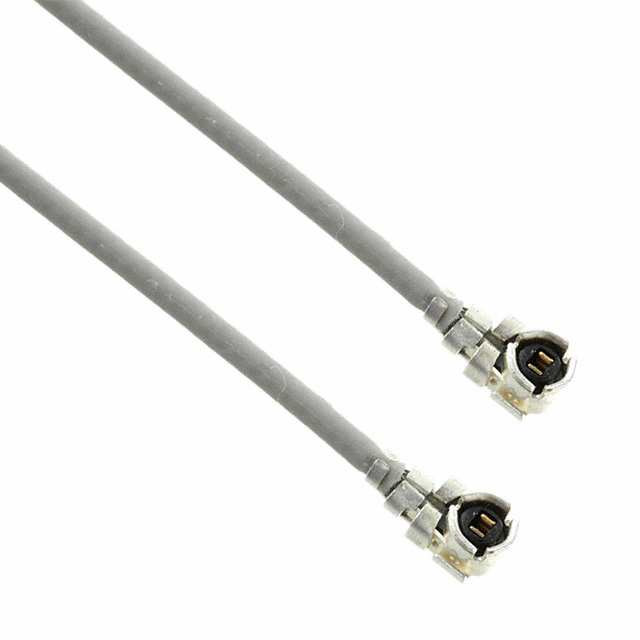

A-1PA-113-150G2

Active

Amphenol RF

CBL ASSY U.FL UMCC PLG-PL 5.906"

Deep-Dive with AI

Search across all available documentation for this part.

A-1PA-113-150G2

Active

Amphenol RF

CBL ASSY U.FL UMCC PLG-PL 5.906"

Deep-Dive with AI

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	A-1PA-113-150G2

1st Connector	U.FL (UMCC), AMC Plug, Right Angle
1st Connector Mounting Type	Free Hanging (In-Line)
1st Contact Gender	Female
2nd Connector	AMC Plug, U.FL (UMCC), Right Angle
2nd Connector Mounting Type	Free Hanging (In-Line)
2nd Contact Gender	Female
Cable Type	1.13mm OD Coaxial Cable
Color	Gray
Features	Shielded
Frequency - Max [Max]	6000 MHz
Length [x]	150 mm
Length [x]	5.906 "
Operating Temperature [Max]	90 °C
Operating Temperature [Min]	-40 °C
Overall Impedance	50 Ohms
Style	AMC, AMC to U.FL (UMCC), U.FL (UMCC)

A-1PA-113 Series

Part	Frequency - Max [Max]	2nd Contact Gender	Overall Impedance	2nd Connector Mounting Type	Color	Features	1st Connector Mounting Type	Cable Type	Style	2nd Connector	Length [x]	Length [x]	Operating Temperature [Max]	Operating Temperature [Min]	1st Contact Gender	1st Connector	Length	Length	Length
Amphenol RF A-1PA-113-250B2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Black	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)	9.843 "	250 mm	90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle
Amphenol RF A-1PA-113-089B2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Black	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)			90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle	3.504 in	89 mm
Amphenol RF A-1PA-113-085B2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Black	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)	3.35 in	85.09 mm	90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle
Amphenol RF A-1PA-113-250G2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Gray	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)	9.843 "	250 mm	90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle
Amphenol RF A-1PA-113-039G2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Gray	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)			90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle	1.53 in	38.86 mm
Amphenol RF A-1PA-113-01KB2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Black	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)			90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle	39.4 in	1 m	3.3 ft
Amphenol RF A-1PA-113-205B2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Black	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)	8.071 "	205 mm	90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle
Amphenol RF A-1PA-113-150G2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Gray	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)	5.906 "	150 mm	90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle
Amphenol RF A-1PA-113-100G2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Gray	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)	3.937 in	0.1 m	90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle
Amphenol RF A-1PA-113-356B2	6000 MHz	Female	50 Ohms	Free Hanging (In-Line)	Black	Shielded	Free Hanging (In-Line)	1.13mm OD Coaxial Cable	AMC AMC to U.FL (UMCC) U.FL (UMCC)	AMC Plug Right Angle U.FL (UMCC)			90 °C	-40 °C	Female	U.FL (UMCC) AMC Plug Right Angle	14.02 in	356 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	100	$ 5.33

Description

General part information

A-1PA-113 Series

Cable Assembly Coaxial U.FL (UMCC), AMC to U.FL (UMCC), AMC 1.13mm OD Coaxial Cable 5.906" (150.00mm)
