A-1PA-113-085B2
ActiveAmphenol RF

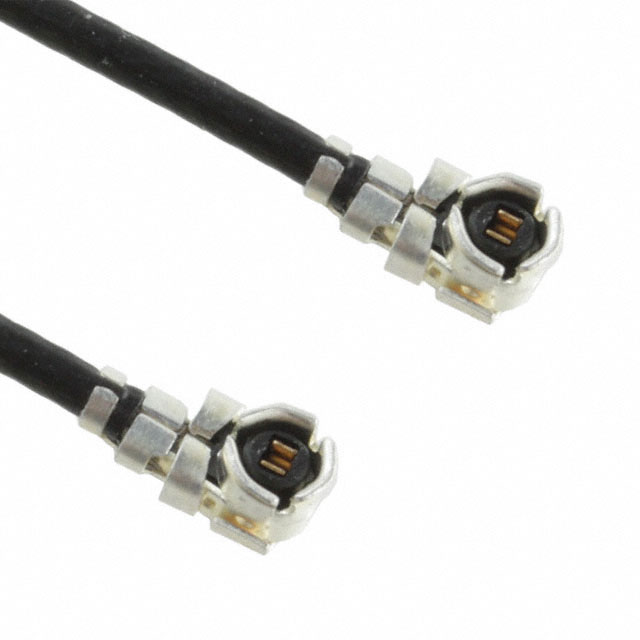

CBL ASSY U.FL UMCC PLG-PLG 3.35"
Deep-Dive with AI
Search across all available documentation for this part.
A-1PA-113-085B2
ActiveAmphenol RF
CBL ASSY U.FL UMCC PLG-PLG 3.35"
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | A-1PA-113-085B2 |
|---|---|
| 1st Connector | U.FL (UMCC), AMC Plug, Right Angle |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Female |
| 2nd Connector | AMC Plug, U.FL (UMCC), Right Angle |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Female |
| Cable Type | 1.13mm OD Coaxial Cable |
| Color | Black |
| Features | Shielded |
| Frequency - Max [Max] | 6000 MHz |
| Length [x] | 3.35 in |
| Length [x] | 85.09 mm |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -40 °C |
| Overall Impedance | 50 Ohms |
| Style | AMC, AMC to U.FL (UMCC), U.FL (UMCC) |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.20 | |
| 10 | $ 5.63 | |||
| 25 | $ 5.34 | |||
| 50 | $ 5.21 | |||
| 100 | $ 4.96 | |||
| 300 | $ 4.34 | |||
| 500 | $ 4.22 | |||
| 1000 | $ 3.60 | |||
| 2500 | $ 3.35 | |||
Description
General part information
A-1PA-113 Series
Cable Assembly Coaxial U.FL (UMCC), AMC to U.FL (UMCC), AMC 1.13mm OD Coaxial Cable 3.350" (85.09mm)
Documents
Technical documentation and resources
No documents available
