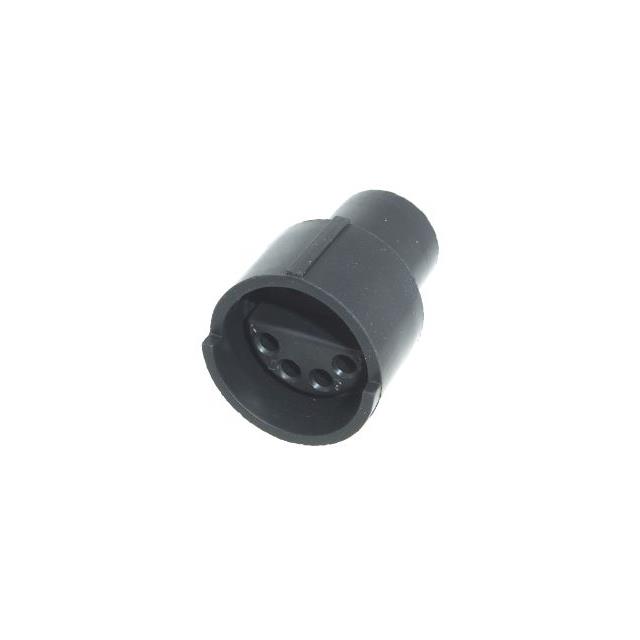

120-1840-000

Active

Sure-Seal

SS-6R

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

120-1840-000

Active

Sure-Seal

SS-6R

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	120-1840-000

Connector Type	Receptacle Housing
Contact Shape	Circular
Contact Type	Crimp
Fastening Type	Push-Pull
Housing Color	Black
Ingress Protection	IP67, IP65
Insert Material	Santoprene™ 101-73
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	6
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Orientation	Keyed
Shell Material	Santoprene™ 101-73
Shielding	Unshielded
Type	For Female Sockets or Male Pins

120-1 Series

Part	Contact Shape	Orientation	Shell Material	Insert Material	Number of Positions	Contact Type	Fastening Type	Type	Connector Type	Mounting Type	Shielding	Operating Temperature [Min]	Operating Temperature [Max]	Ingress Protection	Note	Housing Color
Sure-Seal 120-1842-000	Circular	Keyed	Santoprene™ 101-73	Santoprene™ 101-73	6	Crimp	Push-Pull	For Female Sockets or Male Pins	Plug Housing	Free Hanging (In-Line)	Unshielded	-40 °C	105 ░C	IP65 IP67	Contacts Not Included	Black
Sure-Seal 120-1903-000	Circular	Keyed	Santoprene™ 101-73	Santoprene™ 101-73	1	Crimp	Push-Pull	For Female Sockets or Male Pins	Receptacle Housing		Unshielded	-40 °C	105 ░C	IP65 IP67	Contacts Not Included	Black
Sure-Seal 120-1804-000	Circular	Keyed	Santoprene™ 101-73	Santoprene™ 101-73	2	Crimp	Push-Pull	For Female Sockets or Male Pins	Receptacle Housing	Free Hanging (In-Line)	Unshielded	-40 °C	105 ░C	IP65 IP67	Contacts Not Included	Black
Sure-Seal 120-1837-002
Sure-Seal 120-1839-000	Circular	Keyed	Santoprene™ 101-73	Santoprene™ 101-73		Crimp	Push-Pull	For Female Sockets or Male Pins	Receptacle Housing	Free Hanging (In-Line)	Unshielded	-40 °C	105 ░C	IP65 IP67	Contacts Not Included	Black
Sure-Seal 120-1840-000	Circular	Keyed	Santoprene™ 101-73	Santoprene™ 101-73	6	Crimp	Push-Pull	For Female Sockets or Male Pins	Receptacle Housing	Free Hanging (In-Line)	Unshielded	-40 °C	105 ░C	IP65 IP67	Contacts Not Included	Black
Sure-Seal 120-1833-000	Circular	Keyed	Santoprene™ 101-73	Santoprene™ 101-73	1	Crimp	Push-Pull	For Female Sockets or Male Pins	Receptacle Housing	Free Hanging (In-Line)	Unshielded	-40 °C	105 ░C	IP65 IP67	Contacts Not Included	Black
Sure-Seal 120-1906-001
Sure-Seal 120-1806-000	Circular	Keyed	Santoprene™ 101-73	Santoprene™ 101-73	4	Crimp	Push-Pull	For Female Sockets or Male Pins	Receptacle Housing	Free Hanging (In-Line)	Unshielded	-40 °C	105 ░C	IP65 IP67	Contacts Not Included	Black
Sure-Seal 120-1874-000	Circular	Keyed	Santoprene™ 101-73	Santoprene™ 101-73	7	Crimp	Push-Pull	For Female Sockets or Male Pins	Receptacle Housing	Free Hanging (In-Line)	Unshielded	-40 °C	105 ░C	IP65 IP67	Contacts Not Included	Black

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 2.44
		10	$ 2.30
		25	$ 2.11
		50	$ 1.86
		100	$ 1.67

Description

General part information

120-1 Series

6 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
