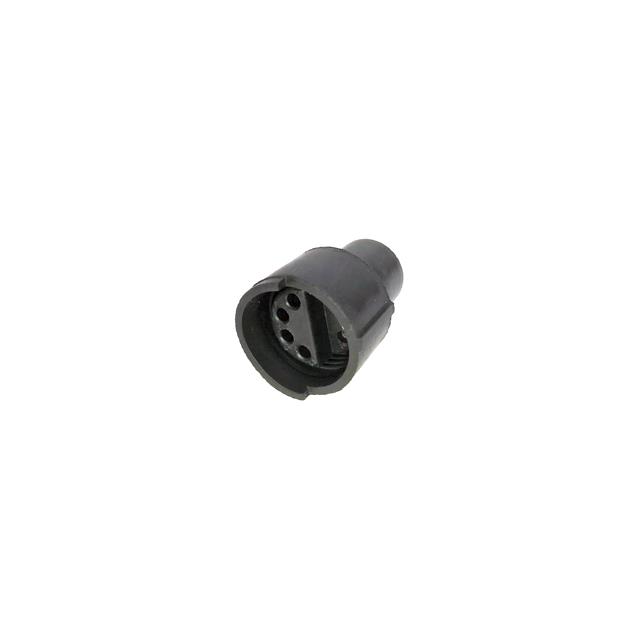

120-1839-000
ActiveSure-Seal
SS-5R
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
120-1839-000
ActiveSure-Seal
SS-5R
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 120-1839-000 |
|---|---|
| Connector Type | Receptacle Housing |
| Contact Shape | Circular |
| Contact Type | Crimp |
| Fastening Type | Push-Pull |
| Housing Color | Black |
| Ingress Protection | IP67, IP65 |
| Insert Material | Santoprene™ 101-73 |
| Mounting Type | Free Hanging (In-Line) |
| Note | Contacts Not Included |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Shell Material | Santoprene™ 101-73 |
| Shielding | Unshielded |
| Type | For Female Sockets or Male Pins |
120-1 Series
| Part | Contact Shape | Orientation | Shell Material | Insert Material | Number of Positions | Contact Type | Fastening Type | Type | Connector Type | Mounting Type | Shielding | Operating Temperature [Min] | Operating Temperature [Max] | Ingress Protection | Note | Housing Color |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Sure-Seal | Circular | Keyed | Santoprene™ 101-73 | Santoprene™ 101-73 | 6 | Crimp | Push-Pull | For Female Sockets or Male Pins | Plug Housing | Free Hanging (In-Line) | Unshielded | -40 °C | 105 ░C | IP65 IP67 | Contacts Not Included | Black |
Sure-Seal | Circular | Keyed | Santoprene™ 101-73 | Santoprene™ 101-73 | 1 | Crimp | Push-Pull | For Female Sockets or Male Pins | Receptacle Housing | Unshielded | -40 °C | 105 ░C | IP65 IP67 | Contacts Not Included | Black | |
Sure-Seal | Circular | Keyed | Santoprene™ 101-73 | Santoprene™ 101-73 | 2 | Crimp | Push-Pull | For Female Sockets or Male Pins | Receptacle Housing | Free Hanging (In-Line) | Unshielded | -40 °C | 105 ░C | IP65 IP67 | Contacts Not Included | Black |
Sure-Seal | ||||||||||||||||
Sure-Seal | Circular | Keyed | Santoprene™ 101-73 | Santoprene™ 101-73 | Crimp | Push-Pull | For Female Sockets or Male Pins | Receptacle Housing | Free Hanging (In-Line) | Unshielded | -40 °C | 105 ░C | IP65 IP67 | Contacts Not Included | Black | |
Sure-Seal | Circular | Keyed | Santoprene™ 101-73 | Santoprene™ 101-73 | 6 | Crimp | Push-Pull | For Female Sockets or Male Pins | Receptacle Housing | Free Hanging (In-Line) | Unshielded | -40 °C | 105 ░C | IP65 IP67 | Contacts Not Included | Black |
Sure-Seal | Circular | Keyed | Santoprene™ 101-73 | Santoprene™ 101-73 | 1 | Crimp | Push-Pull | For Female Sockets or Male Pins | Receptacle Housing | Free Hanging (In-Line) | Unshielded | -40 °C | 105 ░C | IP65 IP67 | Contacts Not Included | Black |
Sure-Seal | ||||||||||||||||
Sure-Seal | Circular | Keyed | Santoprene™ 101-73 | Santoprene™ 101-73 | 4 | Crimp | Push-Pull | For Female Sockets or Male Pins | Receptacle Housing | Free Hanging (In-Line) | Unshielded | -40 °C | 105 ░C | IP65 IP67 | Contacts Not Included | Black |
Sure-Seal | Circular | Keyed | Santoprene™ 101-73 | Santoprene™ 101-73 | 7 | Crimp | Push-Pull | For Female Sockets or Male Pins | Receptacle Housing | Free Hanging (In-Line) | Unshielded | -40 °C | 105 ░C | IP65 IP67 | Contacts Not Included | Black |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
120-1 Series
5 Position Circular Connector Receptacle Housing Free Hanging (In-Line)
