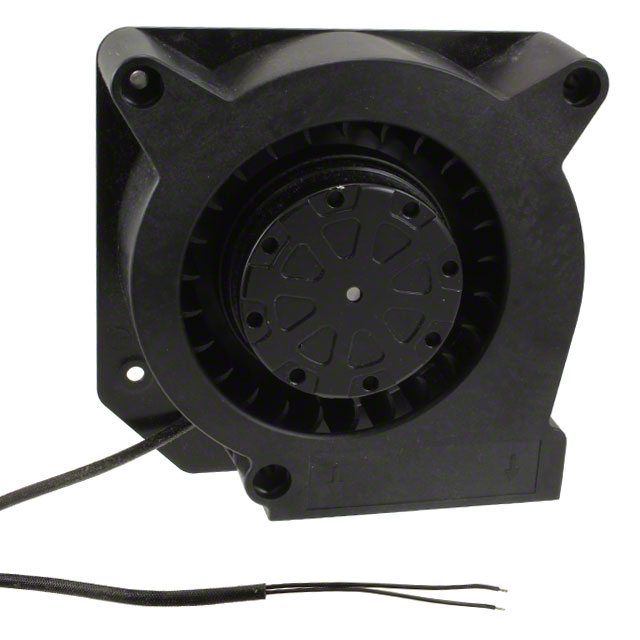

UF90DPB12-H1S2A - UF90DPB12-H1S2A

UF90DPB12-H1S2A

Active
Mechatronics Bearing Group

BLOWER 120X37MM 115VAC

Deep-Dive with AI

DocumentsAC Axial Part Numbering GuideBlowers & Impellers Part Numbering+1

Technical Specifications

Parameters and characteristics for this part

SpecificationUF90DPB12-H1S2A
Approval AgencyCE, cUL, TUV, UL
Bearing TypeBall
Current Rating (Amps)0.21 A
Fan TypeBlower, Centrifugal
FeaturesThermal Overload Protector (TOP)
Material - BladePolyamide (PA), Nylon
Material - FrameAluminum
Noise51 dB(A)
Operating Temperature [Max]60 °C
Operating Temperature [Max]60 °C
Operating Temperature [Min]-40 °C
Operating Temperature [Min]-40 °C
Power (Watts)18 W
RPM2700 RPM
Size / Dimension [x]120 mm
Size / Dimension [y]120 mm
Static Pressure124.5 Pa
Static Pressure0.5 in H2O
Termination2 Wire Leads
Voltage - Rated115 VAC
Weight1.4 lbs
Weight635 g
Width [x]37.2 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 43.16
40$ 37.92
120$ 32.68

Description

General part information

UF90D Series

Fan Blower, Centrifugal 115VAC Square - 120mm L x 120mm H Ball 21.0 CFM (0.588m³/min) 2 Wire Leads
