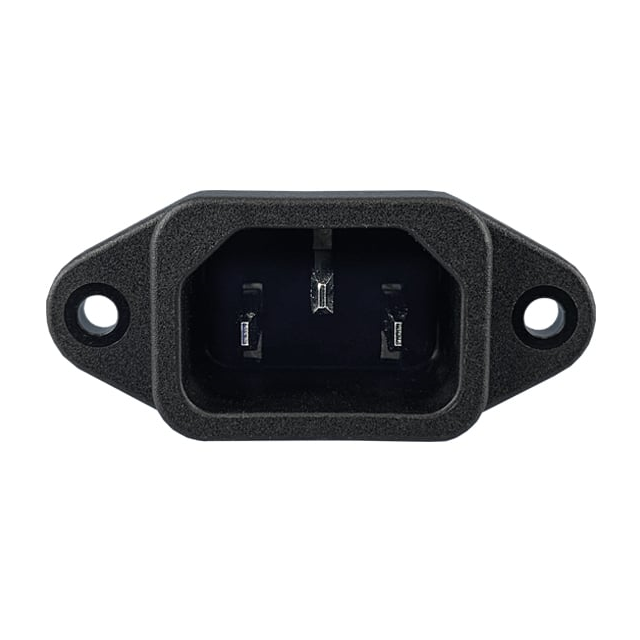

703W-00/02

Active

Qualtek

PWR ENT RCPT IEC320-C14 PNL SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsIEC Connector Designations Datasheet

703W-00/02

Active

Qualtek

PWR ENT RCPT IEC320-C14 PNL SLDR

Deep-Dive with AI

DocumentsIEC Connector Designations Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	703W-00/02

Accomodates a Fuse	False
Approval Agency	UL, VDE, CSA
Connector Style	IEC 320-C14
Connector Type	Male Blades, Receptacle
Current Rating - Appliance Inlet	10 A
Filter Type	Unfiltered - Commercial
Mounting Type	Panel Mount, Flange
Panel Cutout Dimensions [x]	30.5 mm
Panel Cutout Dimensions [y]	22.5 mm
Termination	Solder Eyelet
Voltage Rating - Appliance Inlet	250 VAC

703W-00 Series

Part	Voltage Rating - Appliance Inlet	Approval Agency	Features	Current Rating - Appliance Inlet	Mounting Type	Panel Cutout Dimensions	Connector Style	Termination	Connector Type	Filter Type	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]	Panel Thickness	Panel Thickness	Termination	Termination
Qualtek 703W-00/06	250 VAC	CSA UL VDE	Front or Rear Side Mount	10 A	Flange Panel Mount	Variable Size	IEC 320-C14	Solder Eyelet	Male Blades Receptacle	Unfiltered - Commercial
Qualtek 703W-00/53	250 VAC	CSA UL VDE		10 A	Panel Mount Flange Through Hole Right Angle		IEC 320-C14	Solder	Male Blades Receptacle	Unfiltered - Commercial	31.3 mm	23.3 mm	3 mm	0.118 in
Qualtek 703W-00/54	250 VAC	CSA UL VDE		10 A	Panel Mount Flange Through Hole Right Angle		IEC 320-C14	Solder	Male Blades Receptacle	Unfiltered - Commercial	31.1 mm	23.3 mm	3 mm	0.118 in
Qualtek 703W-00/04	250 VAC	CCC CSA UL VDE	Front or Rear Side Mount	10 A	Flange Panel Mount	Variable Size	IEC 320-C14	Quick Connect	Male Blades Receptacle	Unfiltered - Commercial					0.25 in	6.3 mm
Qualtek 703W-00/02	250 VAC	CSA UL VDE		10 A	Flange Panel Mount		IEC 320-C14	Solder Eyelet	Male Blades Receptacle	Unfiltered - Commercial	30.5 mm	22.5 mm
Qualtek 703W-00/03	250 VAC	CSA UL VDE		10 A	Flange Panel Mount		IEC 320-C14	Quick Connect	Male Blades Receptacle	Unfiltered - Commercial	30.5 mm	22.5 mm				0.189 " 4.8 mm
Qualtek 703W-00/52	250 VAC	CSA UL VDE	Terminating Cover	10 A	Panel Mount Flange Through Hole Right Angle		IEC 320-C14	Solder	Male Blades Receptacle	Unfiltered - Commercial	31.3 mm	23.3 mm	3 mm	0.118 in
Qualtek 703W-00/07	250 VAC	CSA UL VDE	Front or Rear Side Mount	10 A	Flange Panel Mount	Variable Size	IEC 320-C14	Quick Connect	Male Blades Receptacle	Unfiltered - Commercial						0.189 " 4.8 mm
Qualtek 703W-00/08	250 VAC	CSA UL VDE	Front or Rear Side Mount	10 A	Flange Panel Mount	Variable Size	IEC 320-C14	Quick Connect	Male Blades Receptacle	Unfiltered - Commercial					0.25 in	6.3 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 1.18
		10	$ 0.99
		25	$ 0.95
		50	$ 0.93
		100	$ 0.89
		300	$ 0.81
		500	$ 0.73
		1000	$ 0.65
		2500	$ 0.59
