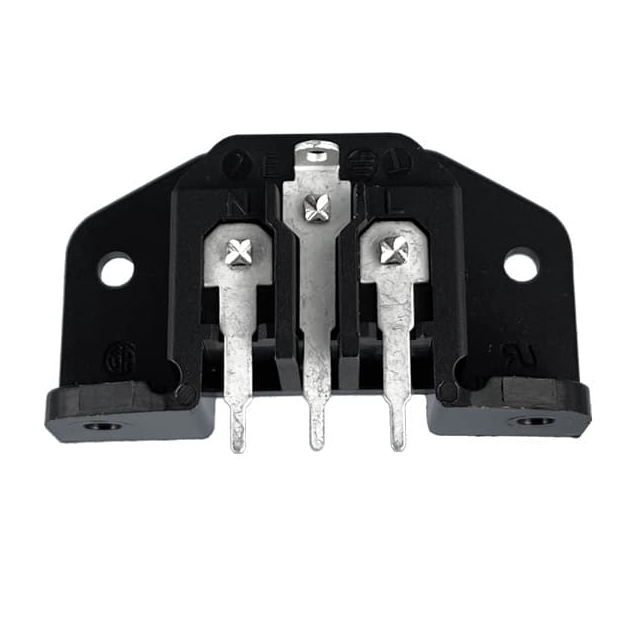

703W-00/53
ActiveQualtek
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Search across all available documentation for this part.
703W-00/53
ActiveQualtek
PWR ENT RCPT IEC320-C14 PNL SLDR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 703W-00/53 |
|---|---|
| Accomodates a Fuse | False |
| Approval Agency | UL, VDE, CSA |
| Connector Style | IEC 320-C14 |
| Connector Type | Male Blades, Receptacle |
| Current Rating - Appliance Inlet | 10 A |
| Filter Type | Unfiltered - Commercial |
| Mounting Type | Panel Mount, Flange, Through Hole, Right Angle |
| Panel Cutout Dimensions [x] | 31.3 mm |
| Panel Cutout Dimensions [y] | 23.3 mm |
| Panel Thickness | 3 mm |
| Panel Thickness | 0.118 in |
| Termination | Solder |
| Voltage Rating - Appliance Inlet | 250 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.65 | |
| 10 | $ 1.43 | |||
| 100 | $ 1.28 | |||
| 1000 | $ 0.92 | |||
| 5000 | $ 0.81 | |||
| 10000 | $ 0.79 | |||
Description
General part information
703W-00 Series
Power Entry Connector Receptacle, Male Blades IEC 320-C14 Panel Mount, Flange; Through Hole, Right Angle
