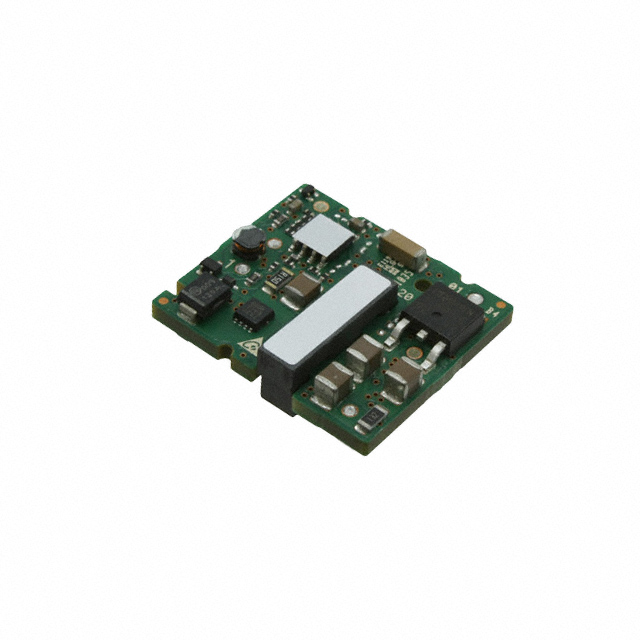

S36SE3R305NMFB

Unknown

Delta Electronics

DC DC CONVERTER 3.3V 17W

Search across all available documentation for this part.

Unknown

Delta Electronics

DC DC CONVERTER 3.3V 17W

Technical Specifications

Parameters and characteristics for this part

Part	Current - Output (Max) [Max]	Mounting Type	Size / Dimension [y]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [y]	Voltage - Input (Min) [Min]	Voltage - Isolation	Type	Power (Watts)	Efficiency	Features	Voltage - Output 1	Number of Outputs	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Input (Max) [Max]	Package / Case	Applications	Control Features
Delta Electronics S36SE3R305NMFB	5 A	Surface Mount	24.4 mm	8.7 mm	27.9 mm	0.34 in	1.1 "	0.96 in	18 V	2250 VDC	Isolated Module	17 W	86.5 %	OCP OTP OVP Remote On/Off UVLO	3.3 V	1	123 °C	-40 °C	75 V	6-SMD Module 1x1 Brick	ITE (Commercial)	Active Low Enable
Delta Electronics S36SE12002PRFZ	2 A	Through Hole	24.4 mm	8.7 mm	27.9 mm	0.34 in	1.1 "	0.96 in	36 V	2250 VDC	Isolated Module	25 W	87 %	OCP OTP OVP Remote On/Off UVLO	12 V	1	123 °C	-40 °C	75 V	6-DIP Module	ITE (Commercial)	Active High Enable
Delta Electronics S36SE05003NDFG	3 A	Through Hole	24.4 mm	8.7 mm	27.9 mm	0.34 in	1.1 "	0.96 in	18 V	1.5 kV	Isolated Module	17 W	83.5 %	Remote On/Off UVLO	5 V	1	85 °C	-40 °C	75 V	6-DIP Module	ITE (Commercial)	Active Low Enable

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	100	$ 22.74

General part information

Isolated Module DC DC Converter 1 Output 3.3V 5A 18V - 75V Input
