S36SE05003NDFG
ActiveDelta Electronics

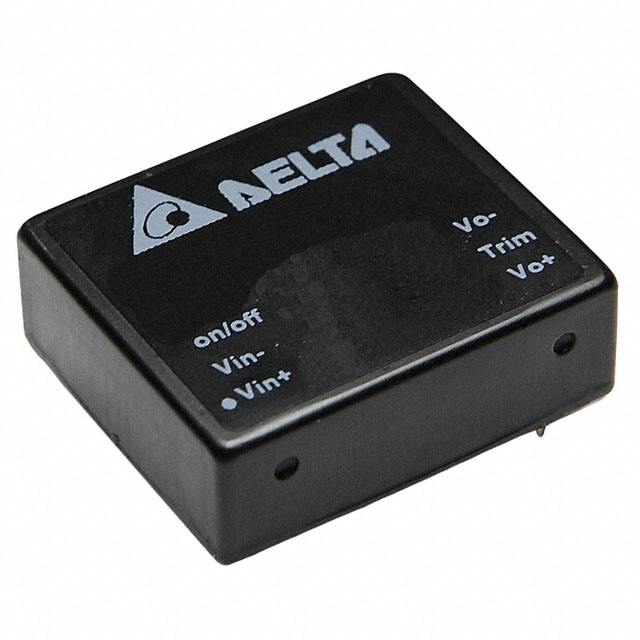

DC DC CONVERTER 5V 17W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
S36SE05003NDFG
ActiveDelta Electronics
DC DC CONVERTER 5V 17W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | S36SE05003NDFG |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active Low, Enable |
| Current - Output (Max) [Max] | 3 A |
| Efficiency | 83.5 % |
| Features | Remote On/Off, UVLO |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-DIP Module |
| Power (Watts) | 17 W |
| Size / Dimension [x] | 27.9 mm |
| Size / Dimension [x] | 1.1 " |
| Size / Dimension [y] | 24.4 mm |
| Size / Dimension [y] | 0.96 in |
| Size / Dimension [z] | 8.7 mm |
| Size / Dimension [z] | 0.34 in |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 75 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 1.5 kV |
| Voltage - Output 1 | 5 V |
S36SE Series
| Part | Current - Output (Max) [Max] | Mounting Type | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [x] | Size / Dimension [y] | Voltage - Input (Min) [Min] | Voltage - Isolation | Type | Power (Watts) | Efficiency | Features | Voltage - Output 1 | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Input (Max) [Max] | Package / Case | Applications | Control Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Delta Electronics | 5 A | Surface Mount | 24.4 mm | 8.7 mm | 27.9 mm | 0.34 in | 1.1 " | 0.96 in | 18 V | 2250 VDC | Isolated Module | 17 W | 86.5 % | OCP OTP OVP Remote On/Off UVLO | 3.3 V | 1 | 123 °C | -40 °C | 75 V | 6-SMD Module 1x1 Brick | ITE (Commercial) | Active Low Enable |
Delta Electronics | 2 A | Through Hole | 24.4 mm | 8.7 mm | 27.9 mm | 0.34 in | 1.1 " | 0.96 in | 36 V | 2250 VDC | Isolated Module | 25 W | 87 % | OCP OTP OVP Remote On/Off UVLO | 12 V | 1 | 123 °C | -40 °C | 75 V | 6-DIP Module | ITE (Commercial) | Active High Enable |
Delta Electronics | 3 A | Through Hole | 24.4 mm | 8.7 mm | 27.9 mm | 0.34 in | 1.1 " | 0.96 in | 18 V | 1.5 kV | Isolated Module | 17 W | 83.5 % | Remote On/Off UVLO | 5 V | 1 | 85 °C | -40 °C | 75 V | 6-DIP Module | ITE (Commercial) | Active Low Enable |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 24.45 | |
| 5 | $ 24.27 | |||
| 10 | $ 24.08 | |||
| 30 | $ 23.70 | |||
| 50 | $ 22.57 | |||
| 100 | $ 20.69 | |||
| 250 | $ 20.32 | |||
Description
General part information
S36SE Series
Isolated Module DC DC Converter 1 Output 5V 3A 18V - 75V Input
