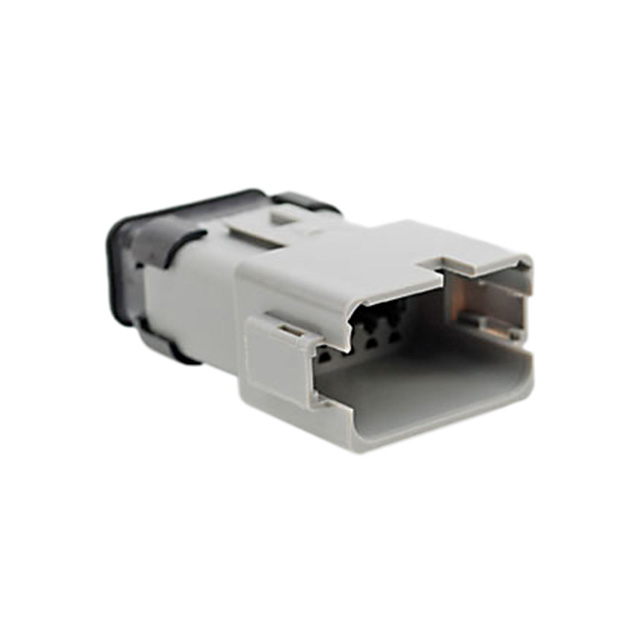

AT04-12PA-SR2GY

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet AT Series SR01/02

AT04-12PA-SR2GY

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS 14-20AWG

Deep-Dive with AI

DocumentsDatasheet AT Series SR01/02

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-12PA-SR2GY

Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed, Strain Relief, Cap (Cover)
Insulation Material	Thermoplastic
Mounting Type	Free Hanging (In-Line)
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-12PA Series

Part	Number of Rows	Contact Type	Note	Fastening Type	Contact Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Insulation Material	Mounting Type	Features	Shrouding	Contact Shape	Current Rating (Amps)	Contact Finish - Mating	Style	Applications	Number of Positions Loaded	Insulation Color	Contact Material	Insulation Height	Insulation Height	Termination	Ingress Protection
Amphenol Sine Systems Corp AT04-12PA-BLK	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Black	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-12PA-PM01	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic		Sealed
Amphenol Sine Systems Corp AT04-12PA-SS01	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-12PA	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-12PA-MM01	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-12PA-RD01	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)	Sealed
Amphenol Sine Systems Corp AT04-12PA-SR2GR	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)	Cap (Cover) Sealed Strain Relief
Amphenol Sine Systems Corp AT04-12PA-SR2GY	2	Male Pin	Contacts Not Included	Latch Holder	Crimp		-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)	Cap (Cover) Sealed Strain Relief
Amphenol Sine Systems Corp AT04-12PA-BM03	2	Male Pin		Latch Holder			-55 °C	125 °C	12	Receptacle	Thermoplastic	Through Hole		Shrouded - 4 Wall	Circular	13 A	Nickel	Board to Cable/Wire	Automotive General Purpose Industrial	All	Gray	Copper Alloy	0.835 "	21.21 mm	Solder	IP67
Amphenol Sine Systems Corp AT04-12PA-MMBLK	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Black	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 5.40
		10	$ 4.88
		25	$ 4.61
		50	$ 4.50
		100	$ 4.28
		250	$ 3.96

Description

General part information

AT04-12PA Series

12 Rectangular Connectors - Housings Receptacle

Documents

Technical documentation and resources

Datasheet

AT Series SR01/02

Datasheet
