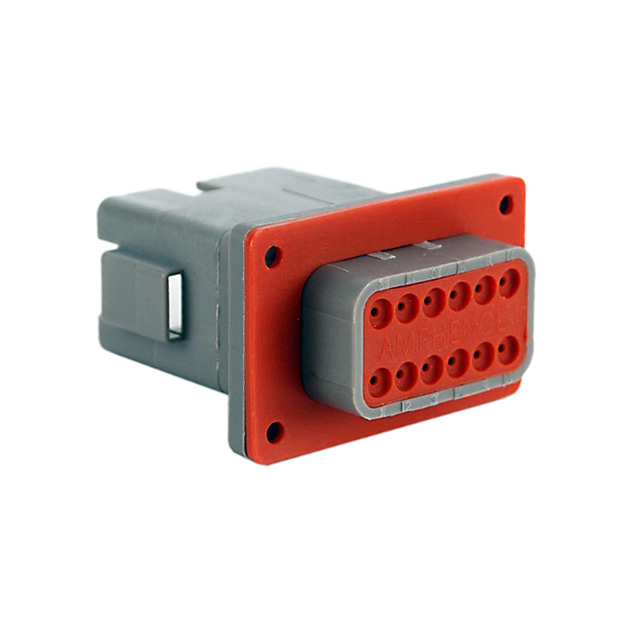

AT04-12PA-PM01

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS 14-20AWG

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsPanelMate Family Datasheet

AT04-12PA-PM01

Active

Amphenol Sine Systems Corp

CONN RCPT HSG 12POS 14-20AWG

Deep-Dive with AI

DocumentsPanelMate Family Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	AT04-12PA-PM01

Color	Gray
Connector Type	Receptacle
Contact Termination	Crimp
Contact Type	Male Pin
Fastening Type	Latch Holder
Features	Sealed
Insulation Material	Thermoplastic
Note	Contacts Not Included
Number of Positions	12
Number of Rows	2
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C

AT04-12PA Series

Part	Number of Rows	Contact Type	Note	Fastening Type	Contact Termination	Color	Operating Temperature [Min]	Operating Temperature [Max]	Number of Positions	Connector Type	Insulation Material	Mounting Type	Features	Shrouding	Contact Shape	Current Rating (Amps)	Contact Finish - Mating	Style	Applications	Number of Positions Loaded	Insulation Color	Contact Material	Insulation Height	Insulation Height	Termination	Ingress Protection
Amphenol Sine Systems Corp AT04-12PA-BLK	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Black	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-12PA-PM01	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic		Sealed
Amphenol Sine Systems Corp AT04-12PA-SS01	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-12PA	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-12PA-MM01	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)
Amphenol Sine Systems Corp AT04-12PA-RD01	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)	Sealed
Amphenol Sine Systems Corp AT04-12PA-SR2GR	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Gray	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)	Cap (Cover) Sealed Strain Relief
Amphenol Sine Systems Corp AT04-12PA-SR2GY	2	Male Pin	Contacts Not Included	Latch Holder	Crimp		-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)	Cap (Cover) Sealed Strain Relief
Amphenol Sine Systems Corp AT04-12PA-BM03	2	Male Pin		Latch Holder			-55 °C	125 °C	12	Receptacle	Thermoplastic	Through Hole		Shrouded - 4 Wall	Circular	13 A	Nickel	Board to Cable/Wire	Automotive General Purpose Industrial	All	Gray	Copper Alloy	0.835 "	21.21 mm	Solder	IP67
Amphenol Sine Systems Corp AT04-12PA-MMBLK	2	Male Pin	Contacts Not Included	Latch Holder	Crimp	Black	-55 °C	125 °C	12	Receptacle	Thermoplastic	Free Hanging (In-Line)

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 7.78
		10	$ 7.04
		25	$ 6.65
		50	$ 6.48
		220	$ 6.16
		440	$ 5.19
		1100	$ 4.54

Description

General part information

AT04-12PA Series

12 Rectangular Connectors - Housings Receptacle Gray

Documents

Technical documentation and resources

PanelMate Family

Datasheet
