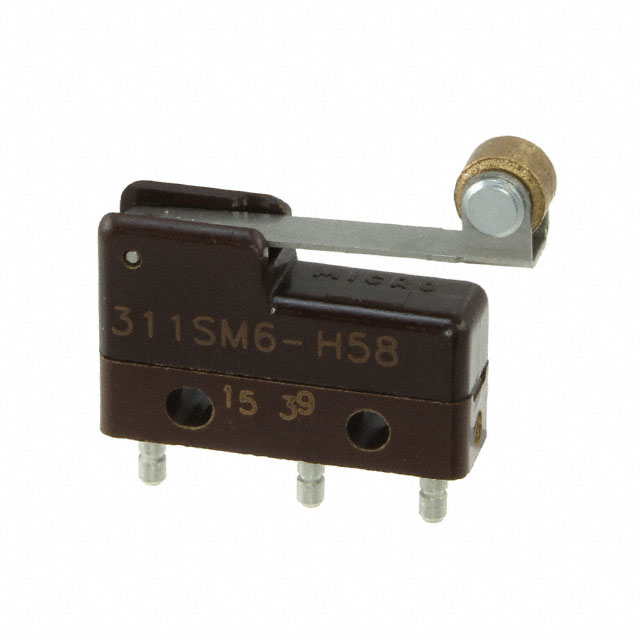

311SM6-H58

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

311SM6-H58

Active

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACTION SPDT 5A 250V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	311SM6-H58

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	5 A
Differential Travel	0.5 mm
Differential Travel	0.02 in
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	40 gf
Operating Position	0.56 in
Operating Position	14.2 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overtravel	0.018 in
Overtravel	0.45 mm
Pretravel	0.085 in
Pretravel	2.16 mm
Switch Function	On-Mom
Termination Style	Quick Connect - 0.058 in (Round)
Voltage Rating - AC	250 V
Voltage Rating - DC	30 V

311SM Series

Part	Actuator Type	Voltage Rating - DC	Overtravel	Overtravel	Operating Position [custom]	Operating Position [custom]	Voltage Rating - AC	Mechanical Life	Pretravel	Pretravel	Operating Force	Differential Travel	Differential Travel	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Mounting Type	Circuit	Release Force	Operating Position [x]	Operating Position [x]	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions 311SM2-H4	Lever Straight	30 V	0.026 in	0.7 mm	0.335 in	8.5 mm	250 V	10000000 Cycles	0.12 in	3 mm	30 gf	0.027 "	0.7 mm	5 A	0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT	5.099 gf
Honeywell Sensing and Productivity Solutions 311SM1005-T	Lever Simulated Roller	30 V	0.026 in	0.7 mm			125 V	10000000 Cycles	0.12 in	3 mm	30 gf	0.027 "	0.7 mm	100 mA		Solder Turret		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT	5.099 gf	11.5 mm	0.453 in
Honeywell Sensing and Productivity Solutions 311SM23-H4	Lever Straight	30 V	0.02 in	0.5 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm		0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT		8.6 mm	0.34 in
Honeywell Sensing and Productivity Solutions 311SM4-T	Lever Simulated Roller	30 V	0.018 in	0.45 mm			250 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm	5 A		Solder Turret		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				11.7 mm	0.46 in
Honeywell Sensing and Productivity Solutions 311SM2-T	Lever Straight	30 V	0.026 in	0.7 mm	0.335 in	8.5 mm	250 V	10000000 Cycles	0.12 in	3 mm	30 gf	0.027 "	0.7 mm	5 A		Solder Turret		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT	5.099 gf
Honeywell Sensing and Productivity Solutions 311SM25-H4	Lever Simulated Roller	30 V	0.018 in	0.45 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm		0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				11.7 mm	0.46 in
Honeywell Sensing and Productivity Solutions 311SM1068-H4	Lever Roller	30 V	0.018 in	0.45 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm	100 mA	0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				14.2 mm	0.56 in
Honeywell Sensing and Productivity Solutions 311SM6-H58	Lever Roller	30 V	0.018 in	0.45 mm			250 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm	5 A		Quick Connect - 0.058 in (Round)		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				14.2 mm	0.56 in
Honeywell Sensing and Productivity Solutions 311SM768-T2	Lever Roller	30 V	0.018 in	0.45 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	16 gf	0.013 in	0.33 mm			Solder Turret		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT	3.059 gf			14.2 mm	0.56 in
Honeywell Sensing and Productivity Solutions 311SM68-H4	Lever Roller	30 V	0.018 in	0.45 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm		0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				14.2 mm	0.56 in
