311SM1068-H4

Obsolete

Honeywell Sensing and Productivity Solutions

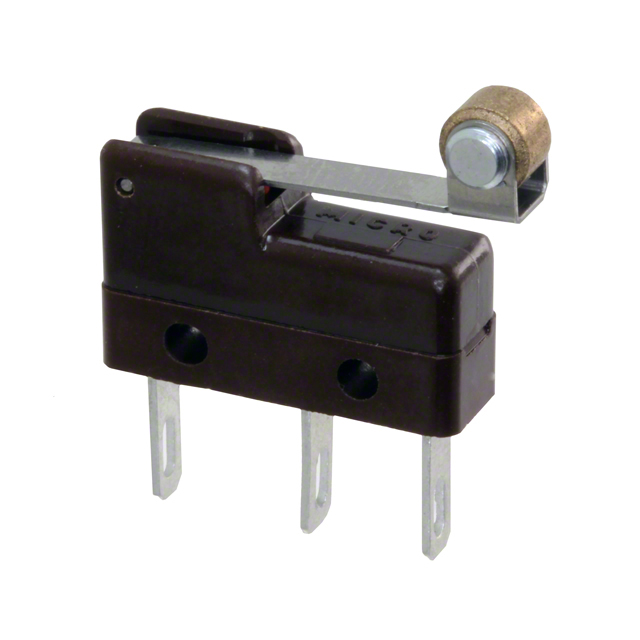

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

311SM1068-H4

Obsolete

Honeywell Sensing and Productivity Solutions

SWITCH SNAP ACT SPDT 0.1A 125V

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	311SM1068-H4

Actuator Type	Roller, Lever
Circuit	SPDT
Current Rating (Amps)	100 mA
Differential Travel	0.5 mm
Differential Travel	0.02 in
Mechanical Life	10000000 Cycles
Mounting Type	Chassis Mount
Operating Force	40 gf
Operating Position	0.56 in
Operating Position	14.2 mm
Operating Temperature [Max]	125 °C
Operating Temperature [Min]	-55 °C
Overtravel	0.018 in
Overtravel	0.45 mm
Pretravel	0.085 in
Pretravel	2.16 mm
Switch Function	On-Mom
Termination Style	0.11 in
Termination Style	Quick Connect, Solder
Termination Style	2.8 mm
Voltage Rating - AC	125 V
Voltage Rating - DC	30 V

311SM Series

Part	Actuator Type	Voltage Rating - DC	Overtravel	Overtravel	Operating Position [custom]	Operating Position [custom]	Voltage Rating - AC	Mechanical Life	Pretravel	Pretravel	Operating Force	Differential Travel	Differential Travel	Current Rating (Amps)	Termination Style	Termination Style	Termination Style	Operating Temperature [Min]	Operating Temperature [Max]	Switch Function	Mounting Type	Circuit	Release Force	Operating Position [x]	Operating Position [x]	Operating Position	Operating Position
Honeywell Sensing and Productivity Solutions 311SM2-H4	Lever Straight	30 V	0.026 in	0.7 mm	0.335 in	8.5 mm	250 V	10000000 Cycles	0.12 in	3 mm	30 gf	0.027 "	0.7 mm	5 A	0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT	5.099 gf
Honeywell Sensing and Productivity Solutions 311SM1005-T	Lever Simulated Roller	30 V	0.026 in	0.7 mm			125 V	10000000 Cycles	0.12 in	3 mm	30 gf	0.027 "	0.7 mm	100 mA		Solder Turret		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT	5.099 gf	11.5 mm	0.453 in
Honeywell Sensing and Productivity Solutions 311SM23-H4	Lever Straight	30 V	0.02 in	0.5 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm		0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT		8.6 mm	0.34 in
Honeywell Sensing and Productivity Solutions 311SM4-T	Lever Simulated Roller	30 V	0.018 in	0.45 mm			250 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm	5 A		Solder Turret		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				11.7 mm	0.46 in
Honeywell Sensing and Productivity Solutions 311SM2-T	Lever Straight	30 V	0.026 in	0.7 mm	0.335 in	8.5 mm	250 V	10000000 Cycles	0.12 in	3 mm	30 gf	0.027 "	0.7 mm	5 A		Solder Turret		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT	5.099 gf
Honeywell Sensing and Productivity Solutions 311SM25-H4	Lever Simulated Roller	30 V	0.018 in	0.45 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm		0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				11.7 mm	0.46 in
Honeywell Sensing and Productivity Solutions 311SM1068-H4	Lever Roller	30 V	0.018 in	0.45 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm	100 mA	0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				14.2 mm	0.56 in
Honeywell Sensing and Productivity Solutions 311SM6-H58	Lever Roller	30 V	0.018 in	0.45 mm			250 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm	5 A		Quick Connect - 0.058 in (Round)		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				14.2 mm	0.56 in
Honeywell Sensing and Productivity Solutions 311SM768-T2	Lever Roller	30 V	0.018 in	0.45 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	16 gf	0.013 in	0.33 mm			Solder Turret		-55 °C	125 °C	On-Mom	Chassis Mount	SPDT	3.059 gf			14.2 mm	0.56 in
Honeywell Sensing and Productivity Solutions 311SM68-H4	Lever Roller	30 V	0.018 in	0.45 mm			125 V	10000000 Cycles	0.085 in	2.16 mm	40 gf	0.02 in	0.5 mm		0.11 in	Quick Connect Solder	2.8 mm	-55 °C	125 °C	On-Mom	Chassis Mount	SPDT				14.2 mm	0.56 in
