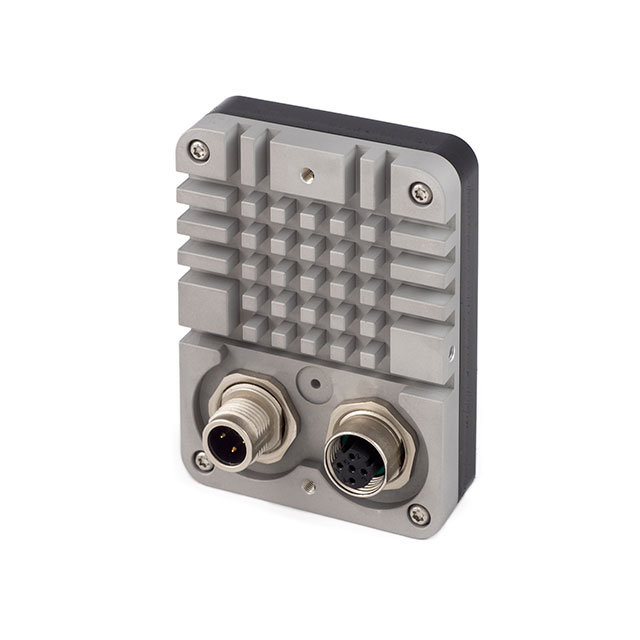

V-MD3_M12-RFB-00A-01
ActiveRFbeam Microwave GmbH
RF TXRX MOD RADAR CER PATCH CHAS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | V-MD3_M12-RFB-00A-01 |
|---|---|
| Antenna Type | Integrated, Ceramic Patch |
| Current - Receiving | 300 mA |
| Current - Transmitting | 300 mA |
| Data Rate | 100 Mbps |
| Frequency [Max] | 64 GHz |
| Frequency [Min] | 60 GHz |
| Modulation | FMCW |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | Module |
| Power - Output | 15 dBm |
| Protocol | UDP, TCP/IP |
| RF Family/Standard | Radar |
| Serial Interfaces | 100BASE-T, GPO |
| Voltage - Supply [Max] | 32 VDC |
| Voltage - Supply [Min] | 8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1170.73 | |
Description
General part information
V-MD3 Series
Radar TCP/IP, UDP Transceiver Module 60GHz ~ 64GHz Integrated, Ceramic Patch Chassis Mount
