V-MD3_M12-EVAL-RFB-00A

Active

RFbeam Microwave GmbH

EVAL BOARD FOR V-MD3

Search across all available documentation for this part.

Active

RFbeam Microwave GmbH

EVAL BOARD FOR V-MD3

Technical Specifications

Parameters and characteristics for this part

Specification	V-MD3_M12-EVAL-RFB-00A

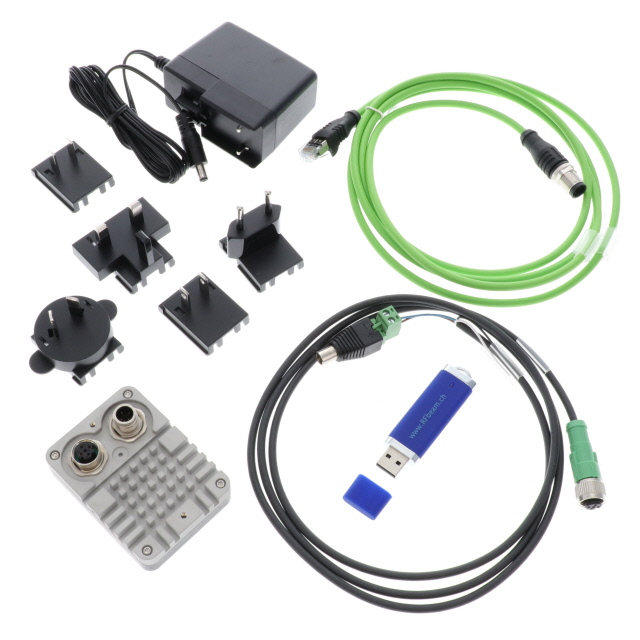

Contents	Power Supply, Cable(s), Accessories, Board(s)
Embedded	True
Sensing Range	80 m
Sensitivity	60 GHz
Sensor Type	Radar
Utilized IC / Part	V-MD3
Voltage - Supply [Max]	32 VDC
Voltage - Supply [Min]	8 V

Part	Voltage - Supply [Max]	Voltage - Supply [Min]	Antenna Type	Serial Interfaces	Protocol	RF Family/Standard	Package / Case	Modulation	Frequency [Max]	Frequency [Min]	Power - Output	Current - Receiving	Current - Transmitting	Data Rate	Operating Temperature [Max]	Operating Temperature [Min]	Mounting Type	Sensing Range	Embedded	Contents	Utilized IC / Part	Sensitivity	Sensor Type
RFbeam Microwave GmbH V-MD3_M12-RFB-00A-01	32 VDC	8 V	Integrated Ceramic Patch	100BASE-T GPO	TCP/IP UDP	Radar	Module	FMCW	64 GHz	60 GHz	15 dBm	300 mA	300 mA	100 Mbps	85 °C	-20 C	Chassis Mount
RFbeam Microwave GmbH V-MD3_M12-EVAL-RFB-00A	32 VDC	8 V																80 m		Accessories Board(s) Cable(s) Power Supply	V-MD3	60 GHz	Radar

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Retail Package	1	$ 1303.00

General part information

V-MD3 - Radar Sensor Evaluation Board
