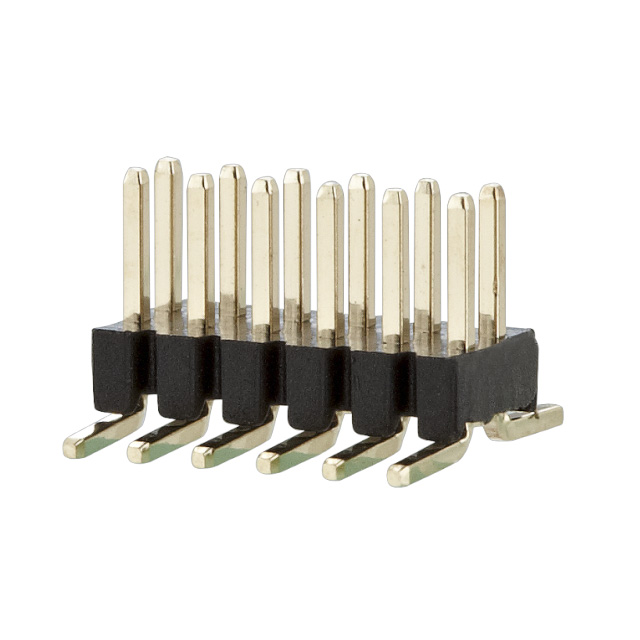

PM20B04VBDN

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Search across all available documentation for this part.

Active

METZ CONNECT USA Inc.

HEADERS AND EDGE TYPE CONNECTOR,

Technical Specifications

Parameters and characteristics for this part

Specification	PM20B04VBDN

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	Flash
Contact Length - Mating	0.11 in
Contact Length - Mating	2.79 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Male Pin
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.591 in
Insulation Height	15 mm
Insulation Material	Polyethylene
Mounting Type	Surface Mount
Number of Positions	8
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating	0.05 in
Row Spacing - Mating	1.27 mm
Shrouding	Unshrouded
Termination	Solder

Part	Insulation Height	Insulation Height	Contact Length - Mating	Contact Length - Mating	Insulation Color	Shrouding	Number of Positions	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Insulation Material	Number of Rows	Contact Finish - Mating	Fastening Type	Termination	Number of Positions Loaded	Connector Type	Pitch - Mating	Pitch - Mating	Contact Material	Mounting Type	Contact Type	Contact Finish Thickness - Mating	Row Spacing - Mating	Row Spacing - Mating
METZ CONNECT USA Inc. PM20B04VBNN	1.5 mm	0.059 "	0.11 in	2.79 mm	Black	Unshrouded	4	Square	-40 °C	105 ░C	Polyethylene	1	Gold	Push-Pull	Solder	All	Header	0.05 in	1.27 mm	Copper Zinc	Surface Mount	Male Pin	Flash
METZ CONNECT USA Inc. PM20B04VBDN	15 mm	0.591 in	0.11 in	2.79 mm	Black	Unshrouded	8	Square	-40 °C	105 ░C	Polyethylene	2	Gold	Push-Pull	Solder	All	Header	0.05 in	1.27 mm	Copper Alloy	Surface Mount	Male Pin	Flash	0.05 in	1.27 mm

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Connector Header Surface Mount 8 position 0.050" (1.27mm)
