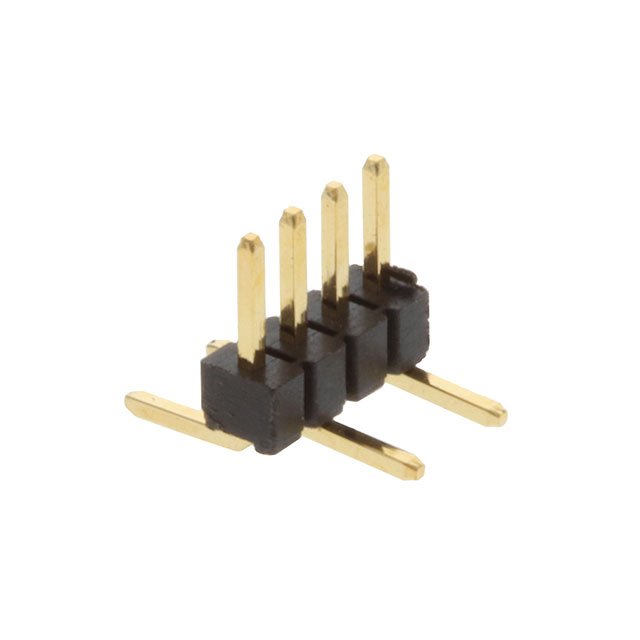

PM20B04VBNN
ActiveMETZ CONNECT USA Inc.
PIN HEADER, SMT, SINGLE ROW, 1.2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PM20B04VBNN
ActiveMETZ CONNECT USA Inc.
PIN HEADER, SMT, SINGLE ROW, 1.2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PM20B04VBNN |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Length - Mating | 0.11 in |
| Contact Length - Mating | 2.79 mm |
| Contact Material | Copper Zinc |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Insulation Color | Black |
| Insulation Height | 1.5 mm |
| Insulation Height | 0.059 " |
| Insulation Material | Polyethylene |
| Mounting Type | Surface Mount |
| Number of Positions | 4 |
| Number of Positions Loaded | All |
| Number of Rows | 1 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 0.23 | |
| 10 | $ 0.20 | |||
| 100 | $ 0.15 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
Description
General part information
PM20B04VB Series
Connector Header Surface Mount 4 position 0.050" (1.27mm)
