0387790045

Active

Molex

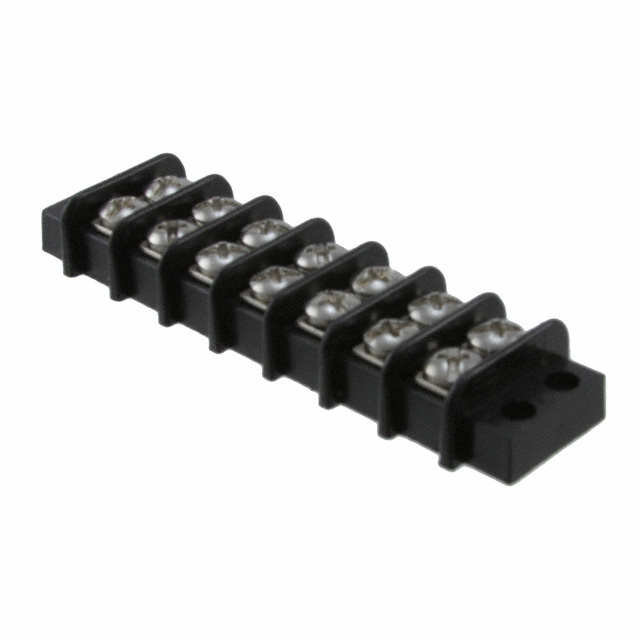

CONN BARRIER STRIP 7CIRC 0.375"

Search across all available documentation for this part.

Active

Molex

CONN BARRIER STRIP 7CIRC 0.375"

Technical Specifications

Parameters and characteristics for this part

Part	Barrier Type	Mounting Type	Number of Wire Entries	Wire Gauge [Min]	Wire Gauge [Max]	Operating Temperature	Color	Terminal Block Type	Features	Voltage Rating	Material Flammability Rating	Top Termination	Terminal Screw Finish	Current Rating (Amps)	Bottom Termination	Pitch [x]	Pitch [x]	Terminal Screw Material	Material - Insulation	Number of Rows	Number of Circuits
Molex 0387790418	2 Wall (Dual)	Chassis Panel	18	12 AWG	24 AWG	110 °C	Black	Barrier Block	Flange Jumper	300 VDC	UL94 V-0	Screws with Captive Plate	Chromate Zinc	20 A	Closed	9.53 mm	0.375 in	Steel	Thermoplastic	2
Molex 0387790298	2 Wall (Dual)	Chassis Panel	8	14 AWG	24 AWG	110 °C	Black	Barrier Block	Flange	300 VDC	UL94 V-0	Screws	Chromate Zinc	20 A	Closed	9.53 mm	0.375 in	Stainless Steel	Thermoplastic	2	4
Molex 0387790045	2 Wall (Dual)	Chassis Panel	14	12 AWG	24 AWG			Barrier Block	Flange	300 VDC				15 A	Closed	9.53 mm	0.375 in			2	7
Molex 0387790419
Molex 0387790462
Molex 0387790219	2 Wall (Dual)	Chassis Panel	10	12 AWG	24 AWG	110 °C	Black	Barrier Block	Flange Jumper	300 VDC	UL94 V-0	Screws with Captive Plate	Chromate Zinc	20 A	Closed	9.53 mm	0.375 in	Steel	Thermoplastic	2	5
Molex 0387790258

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	25	$ 3.13

General part information

7 Circuit 0.375" (9.53mm) Barrier Block Connector

Technical documentation and resources

No documents available
