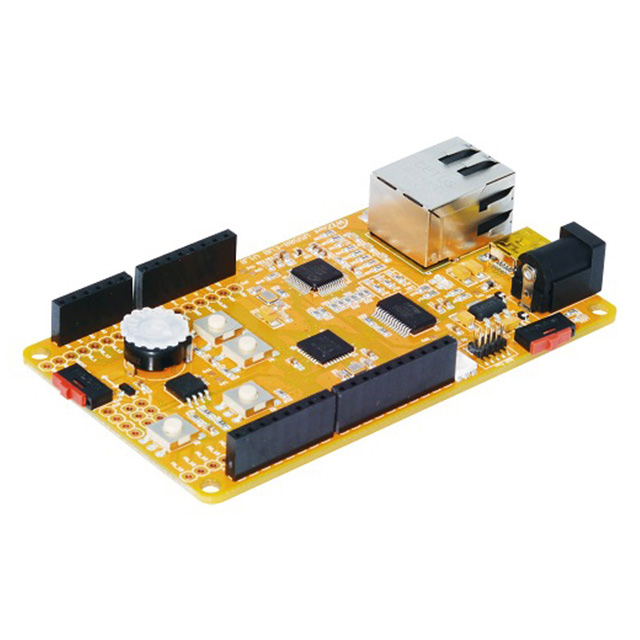

W5500-EVB

Active

WIZnet

W5500 EVALUATION BOARD BASED ON

Search across all available documentation for this part.

Active

WIZnet

W5500 EVALUATION BOARD BASED ON

Technical Specifications

Parameters and characteristics for this part

Part	Function	Type	Contents	Supplied Contents	Utilized IC / Part	Supplier Device Package	Operating Temperature [Max]	Operating Temperature [Min]	Standards	Package / Case	Interface	Current - Supply	Protocol	Voltage - Supply [Max]	Voltage - Supply [Min]
WIZnet W5500-EVB	Ethernet	Interface	Board(s)	Board(s)	W5500
WIZnet W5500 ETHERNET SHIELD	Ethernet	Interface	Board(s)	Board(s)	W5500
WIZnet W5500S2E-Z1	Bridge RS232 to TCP/IP					Module	85 °C	-40 °C	10/100 Base-T/TX PHY	Module	Serial	106 mA	Ethernet
WIZnet W5500S2E-S1	Bridge RS232 to TCP/IP					Module	85 °C	-40 °C	10/100 Base-T/TX PHY	Module	Serial	106 mA	Ethernet	3.6 V	2.97 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	1	$ 39.90

General part information

W5500 Ethernet Interface Evaluation Board
