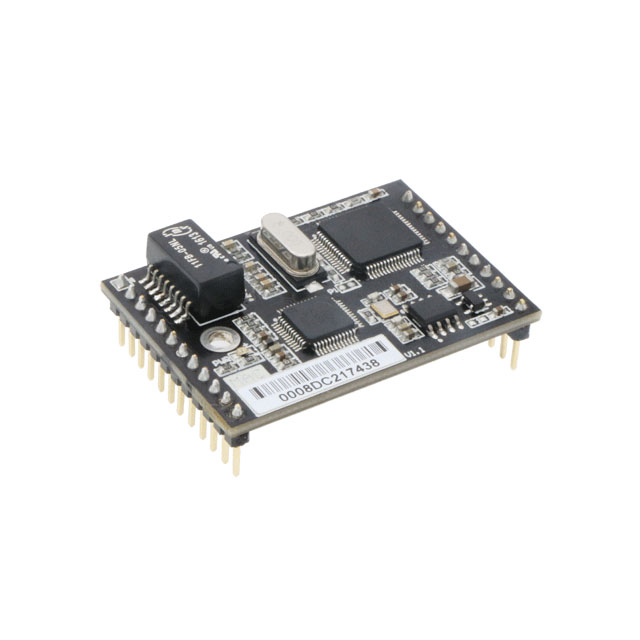

W5500S2E-Z1
ActiveWIZnet
ETHERNET CTLR SINGLE CHIP 10MBPS/100MBPS 3.3V 23-PIN
Deep-Dive with AI
Search across all available documentation for this part.
W5500S2E-Z1
ActiveWIZnet
ETHERNET CTLR SINGLE CHIP 10MBPS/100MBPS 3.3V 23-PIN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | W5500S2E-Z1 |
|---|---|
| Current - Supply | 106 mA |
| Function | Bridge, RS232 to TCP/IP |
| Interface | Serial |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Module |
| Protocol | Ethernet |
| Standards | 10/100 Base-T/TX PHY |
| Supplier Device Package | Module |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 18.91 | |
| 10 | $ 13.69 | |||
| 25 | $ 12.35 | |||
| 80 | $ 11.06 | |||
| 230 | $ 10.19 | |||
| 440 | $ 9.77 | |||
| 945 | $ 9.75 | |||
Description
General part information
W5500 Series
Ethernet Bridge, RS232 to TCP/IP 10/100 Base-T/TX PHY Serial Interface Module
Documents
Technical documentation and resources
No documents available
