Q3-0.005-00-51

Active

Bergquist - Henkel

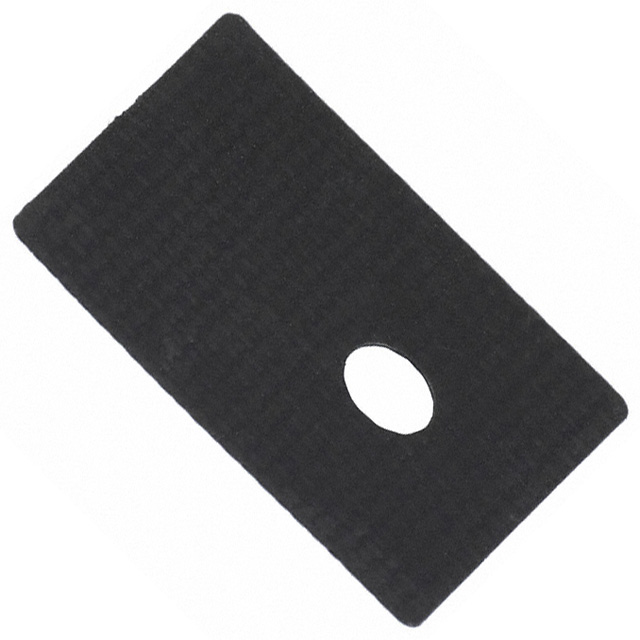

THERM PAD 17.45MMX14.27MM BLACK

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 17.45MMX14.27MM BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Shelf Life	Material	Thermal Conductivity	Outline [x]	Outline [y]	Usage	Adhesive	Backing, Carrier	Thermal Resistivity	Thickness [x]	Thickness [x]	Shape	Color
Bergquist - Henkel Q3-0.005-AC-18	6 Months	Elastomer	2 W/m-K	39.7 mm	26.67 mm	TO-3	Adhesive - One Side	Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rhombus	Black
Bergquist - Henkel Q3-0.005-00-58		Elastomer	2 W/m-K	19.05 mm	12.7 mm	TO-220		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rectangular	Black
Bergquist - Henkel Q3-0.005-00-51		Elastomer	2 W/m-K	17.45 mm	14.27 mm	TO-220		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rectangular	Black
Bergquist - Henkel Q3-0.005-00-30		Elastomer	2 W/m-K	31.75 mm	17.78 mm	TO-66		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rhombus	Black
Bergquist - Henkel Q3-0.005-00-22		Elastomer	2 W/m-K	15.87 mm	5.08 mm	DO-4		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Round	Black
Bergquist - Henkel Q3-0.005-00-67		Elastomer	2 W/m-K	38.1 mm	22.86 mm	Power Module		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rectangular	Black
Bergquist - Henkel Q3-0.005-00-105		Elastomer	2 W/m-K	36.83 mm	21.29 mm	SIP		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rectangular	Black
