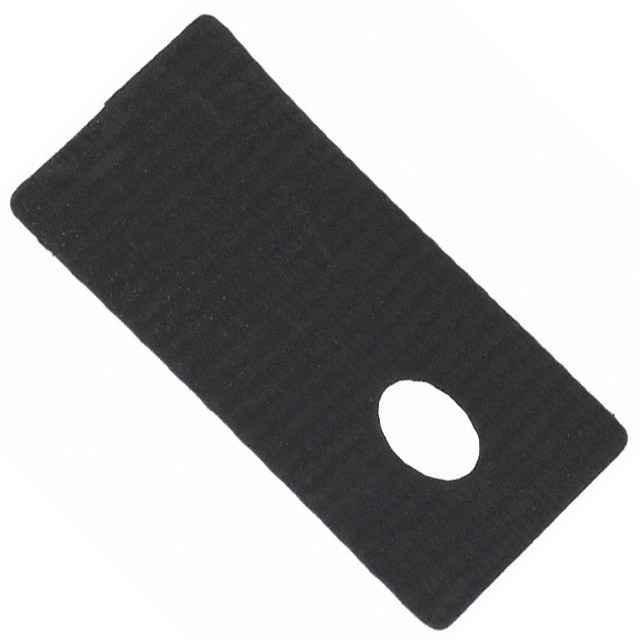

Q3-0.005-00-58

Active

Bergquist - Henkel

THERM PAD 19.05MMX12.7MM BLACK

Search across all available documentation for this part.

Active

Bergquist - Henkel

THERM PAD 19.05MMX12.7MM BLACK

Technical Specifications

Parameters and characteristics for this part

Part	Shelf Life	Material	Thermal Conductivity	Outline [x]	Outline [y]	Usage	Adhesive	Backing, Carrier	Thermal Resistivity	Thickness [x]	Thickness [x]	Shape	Color
Bergquist - Henkel Q3-0.005-AC-18	6 Months	Elastomer	2 W/m-K	39.7 mm	26.67 mm	TO-3	Adhesive - One Side	Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rhombus	Black
Bergquist - Henkel Q3-0.005-00-58		Elastomer	2 W/m-K	19.05 mm	12.7 mm	TO-220		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rectangular	Black
Bergquist - Henkel Q3-0.005-00-51		Elastomer	2 W/m-K	17.45 mm	14.27 mm	TO-220		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rectangular	Black
Bergquist - Henkel Q3-0.005-00-30		Elastomer	2 W/m-K	31.75 mm	17.78 mm	TO-66		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rhombus	Black
Bergquist - Henkel Q3-0.005-00-22		Elastomer	2 W/m-K	15.87 mm	5.08 mm	DO-4		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Round	Black
Bergquist - Henkel Q3-0.005-00-67		Elastomer	2 W/m-K	38.1 mm	22.86 mm	Power Module		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rectangular	Black
Bergquist - Henkel Q3-0.005-00-105		Elastomer	2 W/m-K	36.83 mm	21.29 mm	SIP		Fiberglass	0.35 °C/W	0.005 in	0.127 mm	Rectangular	Black

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Thermal Pad Black 19.05mm x 12.70mm Rectangular
