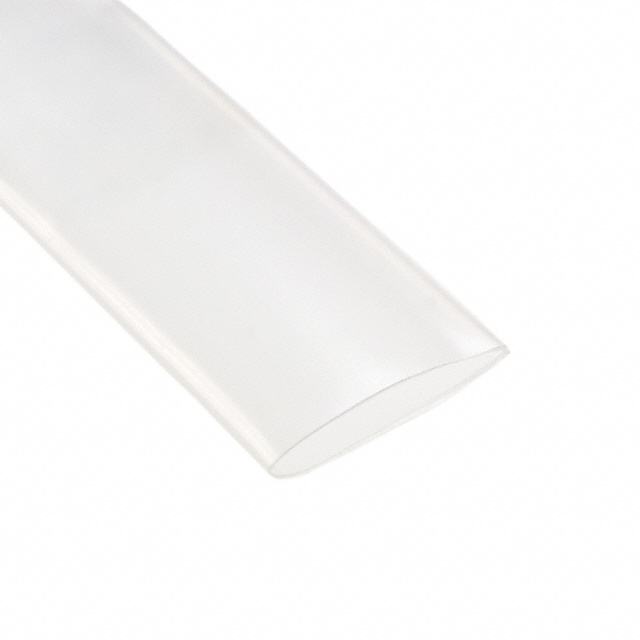

MFP 1/2" CR 48" BX

Active

3M (TC)

HEATSHRK MFP 1/2"X 3" 50=50PC

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

MFP 1/2" CR 48" BX

Active

3M (TC)

HEATSHRK MFP 1/2"X 3" 50=50PC

Deep-Dive with AI

DocumentsDatasheet Heat Shrink Tubing and Devices Catalog

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	MFP 1/2" CR 48" BX

Color	Clear
Features	Chemical Resistant, Fuel Resistant, Abrasion and Cut Resistant, Flame Retardant, Solvent Resistant
Inner Diameter - Recovered [diameter]	0.25 in
Inner Diameter - Recovered [diameter]	6.35 mm
Inner Diameter - Supplied [diameter]	12.7 mm
Inner Diameter - Supplied [diameter]	0.5 in
Length	152.4 mm, 76.2 mm
Length	6 ", 3 "
Length	0.5 '
Length	0.25 ft
Length [x]	4 "
Length [x]	0.333 ft
Length [x]	101.6 mm
Material	Polyvinylidene Fluoride (PVDF), Irradiated
Operating Temperature [Max]	347 °F
Operating Temperature [Min]	-55 °C
Recovered Wall Thickness	0.3 mm
Recovered Wall Thickness	0.012 in
Shelf Life	120 Months
Shelf Life Start	Date of Manufacture
Shrinkage Ratio	2 to 1
Storage/Refrigeration Temperature [Max]	80 °F, 27 °C
Storage/Refrigeration Temperature [Min]	10 °C
Type	Tubing, Semi Rigid

MFP Series

Part	Length [x]	Length [x]	Material	Shrinkage Ratio	Color	Shelf Life Start	Inner Diameter - Supplied [diameter]	Inner Diameter - Supplied [diameter]	Type	Inner Diameter - Recovered [diameter]	Inner Diameter - Recovered	Storage/Refrigeration Temperature [Max]	Storage/Refrigeration Temperature [Min]	Operating Temperature [Min]	Operating Temperature [Max]	Shelf Life	Features	Recovered Wall Thickness	Recovered Wall Thickness	Inner Diameter - Recovered [diameter]	Length	Length	Length	Length [x]	Length	Shrink Temperature
3M (TC) MFP 1/4"CR48"BX	2 ' 4 ft	1.22 m 609.6 mm	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture	0.25 in	6.35 mm	Tubing Semi Rigid	0.125 in	3.18 mm	27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.3 mm	0.012 in
3M (TC) MFP-3/4"-CLEAR-10-10 PC PKS			Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture			Tubing Semi Rigid	0.375 in		27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.43 mm	0.017 in	9.53 mm	152.4 mm	6 "	0.5 '
3M (TC) MFP 1/4" CR 48" BX	0.333 ft 4 ft	1.22 m 101.6 mm	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture	0.25 in	6.35 mm	Tubing Semi Rigid	0.125 in	3.18 mm	27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.3 mm	0.012 in		25.4 mm 38.1 mm 152.4 mm	1 in 1.5 " 6 "	0.5 '	4 "	0.083 ft 0.125 '	175 °C
3M (TC) MFP-1/16-48-CLEAR-BULK	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture	0.063 in	1.6 mm	Tubing Semi Rigid	0.031 in		27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.25 mm	0.01 in	0.79 mm
3M (TC) MFP-3/4-48"-CLEAR-50 PCS	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture			Tubing Semi Rigid	0.375 in		27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.43 mm	0.017 in	9.53 mm
3M (TC) MFP-3/8-48"-CLEAR-125 PCS	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture	0.375 in	9.53 mm	Tubing Semi Rigid	0.187 in		27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.3 mm	0.012 in	4.75 mm
3M (TC) MFP-1/16-CLEAR	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture	0.063 in	1.6 mm	Tubing Semi Rigid	0.031 in		27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.25 mm	0.01 in	0.79 mm
3M (TC) MFP 1/2" CR 48" BX	0.333 ft	101.6 mm	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture	0.5 in	12.7 mm	Tubing Semi Rigid	0.25 in		27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.3 mm	0.012 in	6.35 mm	76.2 mm 152.4 mm	3 " 6 "	0.5 '	4 "	0.25 ft
3M (TC) MFP 3/8" CR 48" BX	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture	0.375 in	9.53 mm	Tubing Semi Rigid	0.187 in		27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.3 mm	0.012 in	4.75 mm	19.05 mm 76.2 mm	0.75 " 3 "			0.062 ' 0.25 ft	175 °C
3M (TC) MFP-1/8-48-CLEAR-BULK	4 ft	1.22 m	Polyvinylidene Fluoride (PVDF) Irradiated	2 to 1	Clear	Date of Manufacture	0.125 "	3.18 mm	Tubing Semi Rigid	0.062 in		27 °C 80 °F	10 °C	-55 °C	347 °F	120 Months	Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant	0.25 mm	0.01 in	1.57 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Bulk	50	$ 0.32
		50	$ 2.25
		50	$ 1.69
		100	$ 0.30
		100	$ 1.58
		100	$ 2.11
		250	$ 1.89
		250	$ 1.43
		250	$ 0.26
		500	$ 0.24
		500	$ 1.37
		500	$ 1.82
		1250	$ 0.24
		1250	$ 1.78
		1250	$ 1.34
	Spool	50	$ 3.36
		100	$ 3.15
		250	$ 2.83
		500	$ 2.73
		1250	$ 2.67

Description

General part information

MFP Series

Heat Shrink Tubing, Semi Rigid 0.500" (12.70mm) 2 to 1 Clear 0.250' (76.20mm, 3.00")
