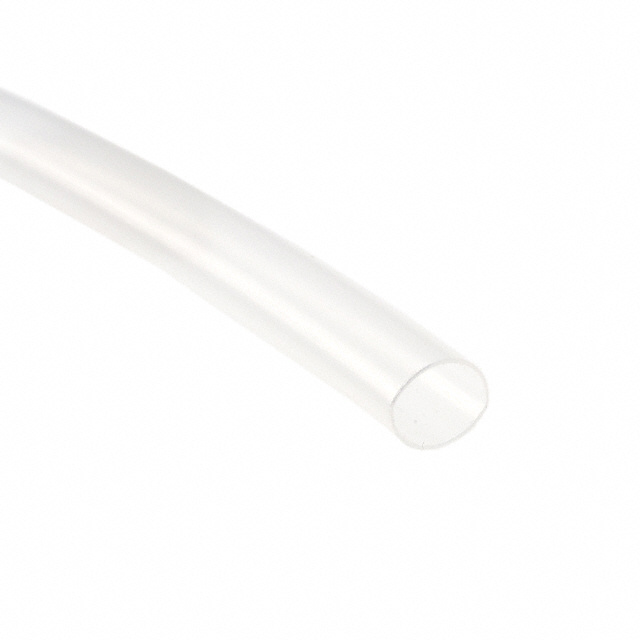

MFP 1/4"CR48"BX
Unknown3M (TC)
HTSHRNK MFP 1/4"X4'(8')CLR
Deep-Dive with AI
Search across all available documentation for this part.
MFP 1/4"CR48"BX
Unknown3M (TC)
HTSHRNK MFP 1/4"X4'(8')CLR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MFP 1/4"CR48"BX |
|---|---|
| Color | Clear |
| Features | Chemical Resistant, Fuel Resistant, Abrasion and Cut Resistant, Flame Retardant, Solvent Resistant |
| Inner Diameter - Recovered | 3.18 mm |
| Inner Diameter - Recovered [diameter] | 0.125 in |
| Inner Diameter - Supplied [diameter] | 0.25 in |
| Inner Diameter - Supplied [diameter] | 6.35 mm |
| Length [x] | 2 ', 4 ft |
| Length [x] | 609.6 mm, 1.22 m |
| Material | Polyvinylidene Fluoride (PVDF), Irradiated |
| Operating Temperature [Max] | 347 °F |
| Operating Temperature [Min] | -55 °C |
| Recovered Wall Thickness | 0.3 mm |
| Recovered Wall Thickness | 0.012 in |
| Shelf Life | 120 Months |
| Shelf Life Start | Date of Manufacture |
| Shrinkage Ratio | 2 to 1 |
| Storage/Refrigeration Temperature [Max] | 80 °F, 27 °C |
| Storage/Refrigeration Temperature [Min] | 10 °C |
| Type | Tubing, Semi Rigid |
MFP Series
| Part | Length [x] | Length [x] | Material | Shrinkage Ratio | Color | Shelf Life Start | Inner Diameter - Supplied [diameter] | Inner Diameter - Supplied [diameter] | Type | Inner Diameter - Recovered [diameter] | Inner Diameter - Recovered | Storage/Refrigeration Temperature [Max] | Storage/Refrigeration Temperature [Min] | Operating Temperature [Min] | Operating Temperature [Max] | Shelf Life | Features | Recovered Wall Thickness | Recovered Wall Thickness | Inner Diameter - Recovered [diameter] | Length | Length | Length | Length [x] | Length | Shrink Temperature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
3M (TC) | 2 ' 4 ft | 1.22 m 609.6 mm | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | 0.25 in | 6.35 mm | Tubing Semi Rigid | 0.125 in | 3.18 mm | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.3 mm | 0.012 in | |||||||
3M (TC) | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | Tubing Semi Rigid | 0.375 in | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.43 mm | 0.017 in | 9.53 mm | 152.4 mm | 6 " | 0.5 ' | ||||||||
3M (TC) | 0.333 ft 4 ft | 1.22 m 101.6 mm | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | 0.25 in | 6.35 mm | Tubing Semi Rigid | 0.125 in | 3.18 mm | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.3 mm | 0.012 in | 25.4 mm 38.1 mm 152.4 mm | 1 in 1.5 " 6 " | 0.5 ' | 4 " | 0.083 ft 0.125 ' | 175 °C | |
3M (TC) | 4 ft | 1.22 m | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | 0.063 in | 1.6 mm | Tubing Semi Rigid | 0.031 in | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.25 mm | 0.01 in | 0.79 mm | |||||||
3M (TC) | 4 ft | 1.22 m | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | Tubing Semi Rigid | 0.375 in | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.43 mm | 0.017 in | 9.53 mm | |||||||||
3M (TC) | 4 ft | 1.22 m | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | 0.375 in | 9.53 mm | Tubing Semi Rigid | 0.187 in | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.3 mm | 0.012 in | 4.75 mm | |||||||
3M (TC) | 4 ft | 1.22 m | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | 0.063 in | 1.6 mm | Tubing Semi Rigid | 0.031 in | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.25 mm | 0.01 in | 0.79 mm | |||||||
3M (TC) | 0.333 ft | 101.6 mm | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | 0.5 in | 12.7 mm | Tubing Semi Rigid | 0.25 in | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.3 mm | 0.012 in | 6.35 mm | 76.2 mm 152.4 mm | 3 " 6 " | 0.5 ' | 4 " | 0.25 ft | ||
3M (TC) | 4 ft | 1.22 m | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | 0.375 in | 9.53 mm | Tubing Semi Rigid | 0.187 in | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.3 mm | 0.012 in | 4.75 mm | 19.05 mm 76.2 mm | 0.75 " 3 " | 0.062 ' 0.25 ft | 175 °C | |||
3M (TC) | 4 ft | 1.22 m | Polyvinylidene Fluoride (PVDF) Irradiated | 2 to 1 | Clear | Date of Manufacture | 0.125 " | 3.18 mm | Tubing Semi Rigid | 0.062 in | 27 °C 80 °F | 10 °C | -55 °C | 347 °F | 120 Months | Abrasion and Cut Resistant Chemical Resistant Flame Retardant Fuel Resistant Solvent Resistant | 0.25 mm | 0.01 in | 1.57 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
MFP Series
Heat Shrink Tubing, Semi Rigid 0.250" (6.35mm) 2 to 1 Clear 4.00' (1.22m)
