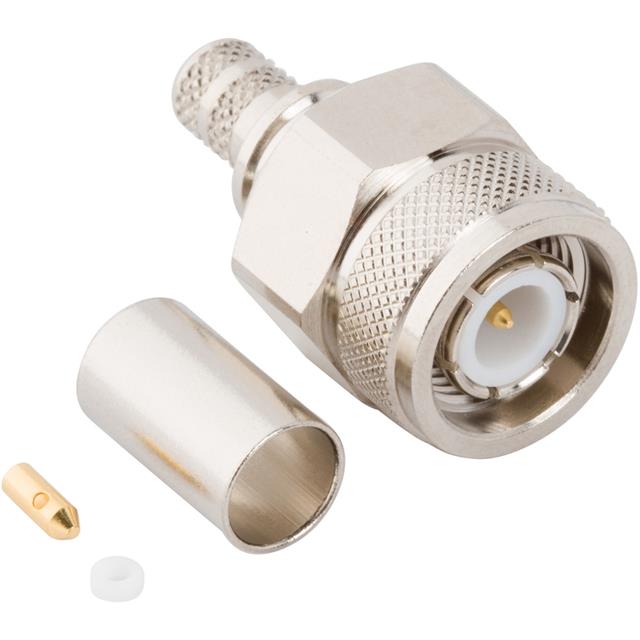

031-6683-EE - 031-6683-EE

031-6683-EE

Active
Amphenol RF

CONNECTOR: TNC; PLUG; MALE; STRAIGHT; 50Ω; IP67; SOLDERING,CRIMPED

Deep-Dive with AI

Search across all available documentation for this part.

031-6683-EE - 031-6683-EE

031-6683-EE

Active
Amphenol RF

CONNECTOR: TNC; PLUG; MALE; STRAIGHT; 50Ω; IP67; SOLDERING,CRIMPED

Deep-Dive with AI

Technical Specifications

Parameters and characteristics for this part

Specification031-6683-EE
Body FinishNickel
Body MaterialBrass
Cable GroupLMR-240
Center Contact MaterialBeryllium Copper
Center Contact PlatingGold
Connector StyleTNC
Connector TypeMale Pin, Plug
Contact TerminationCrimp
Dielectric MaterialPolytetrafluoroethylene (PTFE)
Frequency - Max [Max]6000 MHz
Housing ColorNatural
Impedance50 Ohms
Ingress ProtectionIP67 - Dust Tight, Waterproof
Mating Cycles500
Mounting TypeFree Hanging (In-Line)
Number of Ports1
Operating Temperature [Max]130 °C
Operating Temperature [Min]-40 °C
Shield TerminationCrimp

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBag 1$ 21.22
10$ 18.58
25$ 17.78
50$ 17.20
100$ 16.63
250$ 15.71
500$ 15.25
TMEN/A 100$ 34.98

Description

General part information

031-66 Series

TNC Connector Plug, Male Pin 50 Ohms Free Hanging (In-Line) Crimp

Documents

Technical documentation and resources

No documents available
