031-6600

Active

Amphenol RF

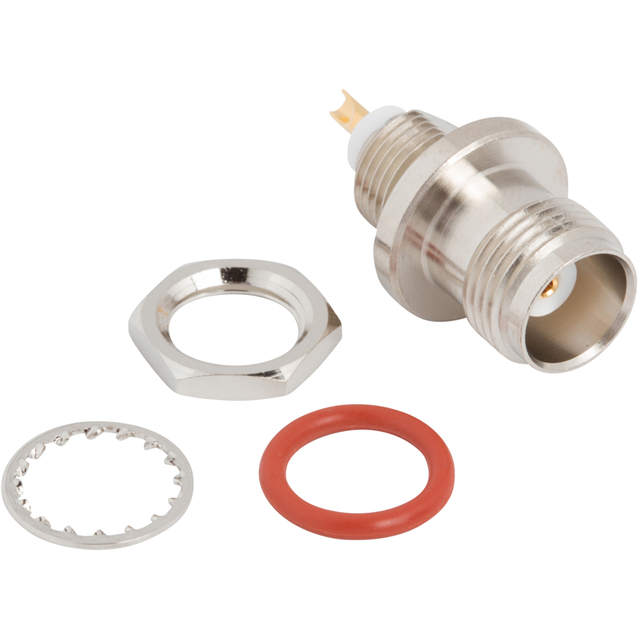

CONNECTOR: TNC; SOCKET; FEMALE; STRAIGHT; 50Ω; IP67; SOLDERING; PTFE

Search across all available documentation for this part.

Active

Amphenol RF

CONNECTOR: TNC; SOCKET; FEMALE; STRAIGHT; 50Ω; IP67; SOLDERING; PTFE

Technical Specifications

Parameters and characteristics for this part

Specification	031-6600

Body Finish	Nickel
Body Material	Brass
Center Contact Material	Beryllium Copper
Center Contact Plating	Gold
Connector Style	TNC
Connector Type	Female Socket, Jack
Contact Termination	Solder Cup
Dielectric Material	Polytetrafluoroethylene (PTFE)
Frequency - Max [Max]	6000 MHz
Housing Color	Silver
Impedance	50 Ohms
Includes	1 Nut, 1 Connector, 1 Lockwasher
Ingress Protection	IP67 - Dust Tight, Waterproof
Mating Cycles	500
Mounting Feature	Bulkhead - Rear Side Nut
Number of Ports	1
Operating Temperature [Max]	165 °C
Operating Temperature [Min]	-65 ░C
Shield Termination	Solder

Part	Contact Termination	Housing Color	Connector Style	Operating Temperature [Min]	Operating Temperature [Max]	Impedance	Ingress Protection	Center Contact Plating	Mounting Type	Shield Termination	Connector Type	Mating Cycles	Body Material	Frequency - Max [Max]	Number of Ports	Dielectric Material	Body Finish	Center Contact Material	Cable Group	Mounting Feature	Includes
Amphenol RF 031-6683	Solder	Silver	TNC	-40 °C	130 °C	50 Ohms	IP67 - Dust Tight Waterproof	Gold	Free Hanging (In-Line)	Crimp	Male Pin Plug	500	Brass	6000 MHz	1	Polytetrafluoroethylene (PTFE)	Nickel	Beryllium Copper Brass	LMR-240
Amphenol RF 031-6683-EE	Crimp	Natural	TNC	-40 °C	130 °C	50 Ohms	IP67 - Dust Tight Waterproof	Gold	Free Hanging (In-Line)	Crimp	Male Pin Plug	500	Brass	6000 MHz	1	Polytetrafluoroethylene (PTFE)	Nickel	Beryllium Copper	LMR-240
Amphenol RF 031-6600	Solder Cup	Silver	TNC	-65 ░C	165 °C	50 Ohms	IP67 - Dust Tight Waterproof	Gold		Solder	Female Socket Jack	500	Brass	6000 MHz	1	Polytetrafluoroethylene (PTFE)	Nickel	Beryllium Copper		Bulkhead - Rear Side Nut	1 Connector 1 Lockwasher 1 Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

TNC Connector Jack, Female Socket 50 Ohms Panel Mount Solder Cup
