HIF6B-40PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

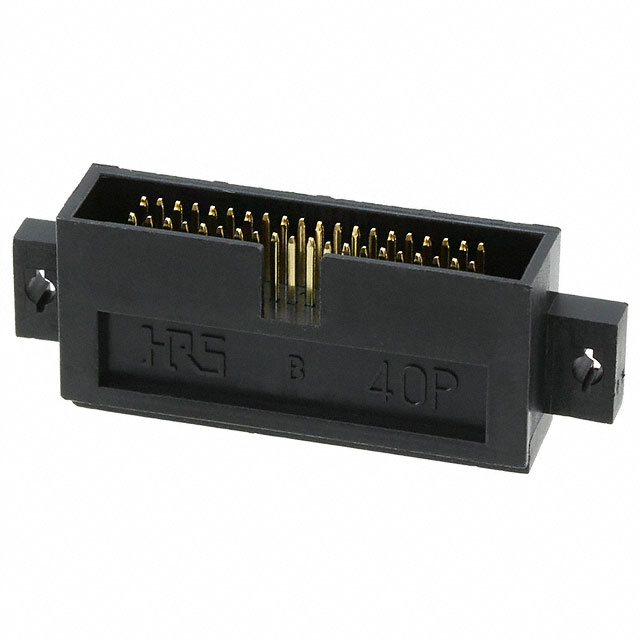

CONN HEADER R/A 40POS 1.27MM

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF6B-40PA-1.27DS(71)

Active

Hirose Electric USA, Inc.

CONN HEADER R/A 40POS 1.27MM

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF6B-40PA-1.27DS(71)

Connector Type	Header
Contact Finish - Mating	Gold
Contact Finish - Post	Tin
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Finish Thickness - Post	2 çm
Contact Finish Thickness - Post	78.7 çin
Contact Length - Mating	5.21 mm
Contact Length - Mating	0.205 in
Contact Material	Brass
Contact Shape	Square
Contact Type	Male Pin
Current Rating (Amps)	0.5 A
Fastening Type	Push-Pull
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	40
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Shrouding	Shrouded - 4 Wall
Termination	Solder
Voltage Rating	300 VDC

HIF6B Series

Part	Termination	Style	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Material	Contact Type	Insulation Material	Number of Positions	Features	Contact Finish - Mating	Mounting Type	Fastening Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Voltage Rating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Contact Shape	Connector Type	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Shrouding	Contact Length - Mating	Contact Length - Mating
Hirose Electric USA, Inc. HIF6B-34DA-1.27DSA(71)	Solder	Board to Board Cable	0.346 in	8.8 mm	85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	34	Mounting Flange Polarizing Key	Gold	Through Hole	Push-Pull	Black	2.54 mm	0.1 in	Tin	125 VAC	General Purpose	0.203 Ám	8 Áin	2 çm	78.7 çin	All	14.8 mm	0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A
Hirose Electric USA, Inc. HIF6B-60PA-1.27DS(71)	Solder				85 °C	-55 °C			2	Brass	Male Pin	Polybutylene Terephthalate (PBT)	60		Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in	Tin	300 VDC		0.203 Ám	8 Áin	2 çm	78.7 çin	All		0.05 in	1.27 mm	Square	Header	UL94 V-0	0.5 A	0.335 "	8.51 mm	Shrouded - 4 Wall	5.21 mm	0.205 in
Hirose Electric USA, Inc. HIF6B-80PA-1.27DS(71)	Solder				85 °C	-55 °C			2	Brass	Male Pin	Polybutylene Terephthalate (PBT)	80		Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in	Tin	300 VDC		0.203 Ám	8 Áin	2 çm	78.7 çin	All		0.05 in	1.27 mm	Square	Header	UL94 V-0	0.5 A	0.335 "	8.51 mm	Shrouded - 4 Wall	5.21 mm	0.205 in
Hirose Electric USA, Inc. HIF6B-60PA-1.27DSL(71)	Solder				85 °C	-55 °C			2	Brass	Male Pin	Polybutylene Terephthalate (PBT)	60		Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in	Tin	300 VDC		0.203 Ám	8 Áin	2 çm	78.7 çin	All		0.05 in	1.27 mm	Square	Header	UL94 V-0	0.5 A	0.335 "	8.51 mm	Shrouded - 4 Wall	5.21 mm	0.205 in
Hirose Electric USA, Inc. HIF6B-80DA-1.27DSA(71)	Solder	Board to Board Cable	0.346 in	8.8 mm	85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	80	Mounting Flange Polarizing Key	Gold	Through Hole	Push-Pull	Black	2.54 mm	0.1 in	Tin	125 VAC	General Purpose	0.203 Ám	8 Áin	2 çm	78.7 çin	All	14.8 mm	0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A
Hirose Electric USA, Inc. HIF6B-80DA-1.27DS(71)	Solder	Board to Board Cable			85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	80	Mounting Flange Polarizing Key	Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in		125 VAC	General Purpose	0.203 Ám	8 Áin			All		0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6B-60DA-1.27DS(71)	Solder	Board to Board Cable			85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	60	Mounting Flange Polarizing Key	Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in		125 VAC	General Purpose	0.203 Ám	8 Áin			All		0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6B-40PA-1.27DS(71)	Solder				85 °C	-55 °C			2	Brass	Male Pin	Polybutylene Terephthalate (PBT)	40		Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in	Tin	300 VDC		0.203 Ám	8 Áin	2 çm	78.7 çin	All		0.05 in	1.27 mm	Square	Header	UL94 V-0	0.5 A	0.335 "	8.51 mm	Shrouded - 4 Wall	5.21 mm	0.205 in
Hirose Electric USA, Inc. HIF6B-34DA-1.27DSL(71)	Solder	Board to Board Cable			85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	34	Board Lock Mounting Flange Polarizing Key	Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in		125 VAC	General Purpose	0.203 Ám	8 Áin			All		0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6B-26DA-1.27DSL(71)	Solder	Board to Board Cable			85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	26	Board Lock Mounting Flange Polarizing Key	Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in		125 VAC	General Purpose	0.203 Ám	8 Áin			All		0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A	0.335 "	8.51 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tray	1	$ 5.52
		10	$ 4.22
		80	$ 3.35
		440	$ 2.80
		945	$ 2.60

Description

General part information

HIF6B Series

Connector Header Through Hole, Right Angle 40 position 0.050" (1.27mm)
