HIF6B-60DA-1.27DS(71)

Active

Hirose Electric USA, Inc.

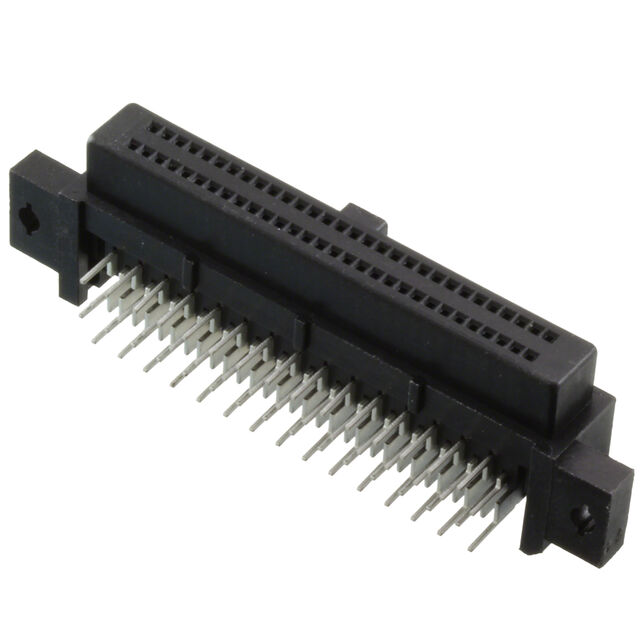

CONN RCPT 60P 0.05 GOLD PCB R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet

HIF6B-60DA-1.27DS(71)

Active

Hirose Electric USA, Inc.

CONN RCPT 60P 0.05 GOLD PCB R/A

Deep-Dive with AI

DocumentsDatasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	HIF6B-60DA-1.27DS(71)

Applications	General Purpose
Connector Type	Receptacle
Contact Finish - Mating	Gold
Contact Finish Thickness - Mating	0.203 Ám
Contact Finish Thickness - Mating	8 Áin
Contact Length - Post	0.118 in
Contact Length - Post	3 mm
Contact Material	Copper Alloy
Contact Shape	Square
Contact Type	Female Socket
Current Rating (Amps)	0.5 A
Fastening Type	Push-Pull
Features	Polarizing Key, Mounting Flange
Insulation Color	Black
Insulation Height	0.335 "
Insulation Height	8.51 mm
Insulation Material	Polybutylene Terephthalate (PBT)
Material Flammability Rating	UL94 V-0
Mounting Type	Through Hole, Right Angle
Number of Positions	60
Number of Positions Loaded	All
Number of Rows	2
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-55 °C
Pitch - Mating	0.05 in
Pitch - Mating	1.27 mm
Row Spacing - Mating [x]	2.54 mm
Row Spacing - Mating [x]	0.1 in
Style	Board to Board, Cable
Termination	Solder
Voltage Rating	125 VAC

HIF6B Series

Part	Termination	Style	Insulation Height [z]	Insulation Height [z]	Operating Temperature [Max]	Operating Temperature [Min]	Contact Length - Post	Contact Length - Post	Number of Rows	Contact Material	Contact Type	Insulation Material	Number of Positions	Features	Contact Finish - Mating	Mounting Type	Fastening Type	Insulation Color	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Contact Finish - Post	Voltage Rating	Applications	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Mated Stacking Heights	Pitch - Mating	Pitch - Mating	Contact Shape	Connector Type	Material Flammability Rating	Current Rating (Amps)	Insulation Height	Insulation Height	Shrouding	Contact Length - Mating	Contact Length - Mating
Hirose Electric USA, Inc. HIF6B-34DA-1.27DSA(71)	Solder	Board to Board Cable	0.346 in	8.8 mm	85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	34	Mounting Flange Polarizing Key	Gold	Through Hole	Push-Pull	Black	2.54 mm	0.1 in	Tin	125 VAC	General Purpose	0.203 Ám	8 Áin	2 çm	78.7 çin	All	14.8 mm	0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A
Hirose Electric USA, Inc. HIF6B-60PA-1.27DS(71)	Solder				85 °C	-55 °C			2	Brass	Male Pin	Polybutylene Terephthalate (PBT)	60		Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in	Tin	300 VDC		0.203 Ám	8 Áin	2 çm	78.7 çin	All		0.05 in	1.27 mm	Square	Header	UL94 V-0	0.5 A	0.335 "	8.51 mm	Shrouded - 4 Wall	5.21 mm	0.205 in
Hirose Electric USA, Inc. HIF6B-80PA-1.27DS(71)	Solder				85 °C	-55 °C			2	Brass	Male Pin	Polybutylene Terephthalate (PBT)	80		Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in	Tin	300 VDC		0.203 Ám	8 Áin	2 çm	78.7 çin	All		0.05 in	1.27 mm	Square	Header	UL94 V-0	0.5 A	0.335 "	8.51 mm	Shrouded - 4 Wall	5.21 mm	0.205 in
Hirose Electric USA, Inc. HIF6B-60PA-1.27DSL(71)	Solder				85 °C	-55 °C			2	Brass	Male Pin	Polybutylene Terephthalate (PBT)	60		Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in	Tin	300 VDC		0.203 Ám	8 Áin	2 çm	78.7 çin	All		0.05 in	1.27 mm	Square	Header	UL94 V-0	0.5 A	0.335 "	8.51 mm	Shrouded - 4 Wall	5.21 mm	0.205 in
Hirose Electric USA, Inc. HIF6B-80DA-1.27DSA(71)	Solder	Board to Board Cable	0.346 in	8.8 mm	85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	80	Mounting Flange Polarizing Key	Gold	Through Hole	Push-Pull	Black	2.54 mm	0.1 in	Tin	125 VAC	General Purpose	0.203 Ám	8 Áin	2 çm	78.7 çin	All	14.8 mm	0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A
Hirose Electric USA, Inc. HIF6B-80DA-1.27DS(71)	Solder	Board to Board Cable			85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	80	Mounting Flange Polarizing Key	Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in		125 VAC	General Purpose	0.203 Ám	8 Áin			All		0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6B-60DA-1.27DS(71)	Solder	Board to Board Cable			85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	60	Mounting Flange Polarizing Key	Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in		125 VAC	General Purpose	0.203 Ám	8 Áin			All		0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6B-40PA-1.27DS(71)	Solder				85 °C	-55 °C			2	Brass	Male Pin	Polybutylene Terephthalate (PBT)	40		Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in	Tin	300 VDC		0.203 Ám	8 Áin	2 çm	78.7 çin	All		0.05 in	1.27 mm	Square	Header	UL94 V-0	0.5 A	0.335 "	8.51 mm	Shrouded - 4 Wall	5.21 mm	0.205 in
Hirose Electric USA, Inc. HIF6B-34DA-1.27DSL(71)	Solder	Board to Board Cable			85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	34	Board Lock Mounting Flange Polarizing Key	Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in		125 VAC	General Purpose	0.203 Ám	8 Áin			All		0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A	0.335 "	8.51 mm
Hirose Electric USA, Inc. HIF6B-26DA-1.27DSL(71)	Solder	Board to Board Cable			85 °C	-55 °C	0.118 in	3 mm	2	Copper Alloy	Female Socket	Polybutylene Terephthalate (PBT)	26	Board Lock Mounting Flange Polarizing Key	Gold	Through Hole Right Angle	Push-Pull	Black	2.54 mm	0.1 in		125 VAC	General Purpose	0.203 Ám	8 Áin			All		0.05 in	1.27 mm	Square	Receptacle	UL94 V-0	0.5 A	0.335 "	8.51 mm
