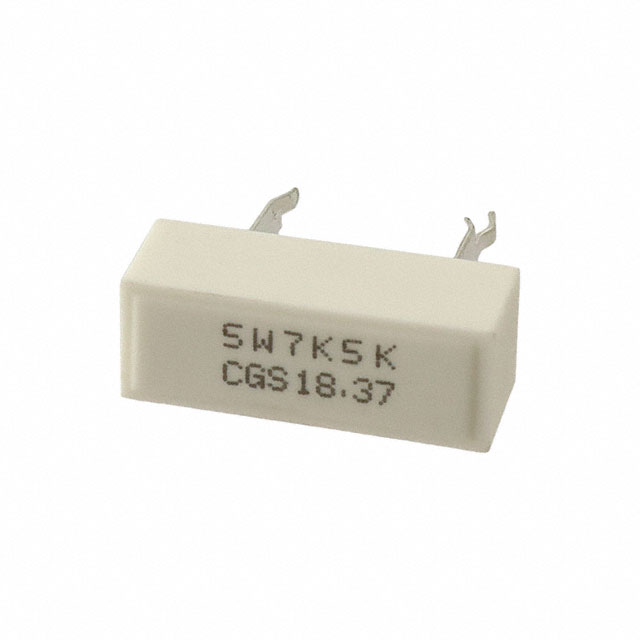

SQZR57K5K
ActiveTE Connectivity Passive Product
RES 7.5K OHM 10% 5W RADIAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SQZR57K5K
ActiveTE Connectivity Passive Product
RES 7.5K OHM 10% 5W RADIAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SQZR57K5K |
|---|---|
| Composition | Metal Oxide Film |
| Features | Safety, Moisture Resistant, Cement Coated, Flame Proof |
| Height - Seated (Max) [Max] [z] | 11 mm |
| Height - Seated (Max) [Max] [z] | 0.433 in |
| Number of Terminations | 2 |
| Operating Temperature [Max] | 250 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial |
| Power (Watts) | 5 W |
| Resistance | 7.5 kOhms |
| Size / Dimension [x] | 28 mm |
| Size / Dimension [x] | 1.102 in |
| Size / Dimension [y] | 10 mm |
| Size / Dimension [y] | 0.394 in |
| Supplier Device Package | Radial Lead |
| Temperature Coefficient | 300 ppm/°C |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1.14 | |
| 10 | $ 0.74 | |||
| 25 | $ 0.64 | |||
| 50 | $ 0.57 | |||
| 100 | $ 0.51 | |||
| 250 | $ 0.45 | |||
| 500 | $ 0.41 | |||
| 1000 | $ 0.38 | |||
| 5000 | $ 0.32 | |||
Description
General part information
SQZR5 Series
7.5 kOhms ±10% 5W Through Hole Resistor Radial Cement Coated, Flame Proof, Moisture Resistant, Safety Metal Oxide Film
