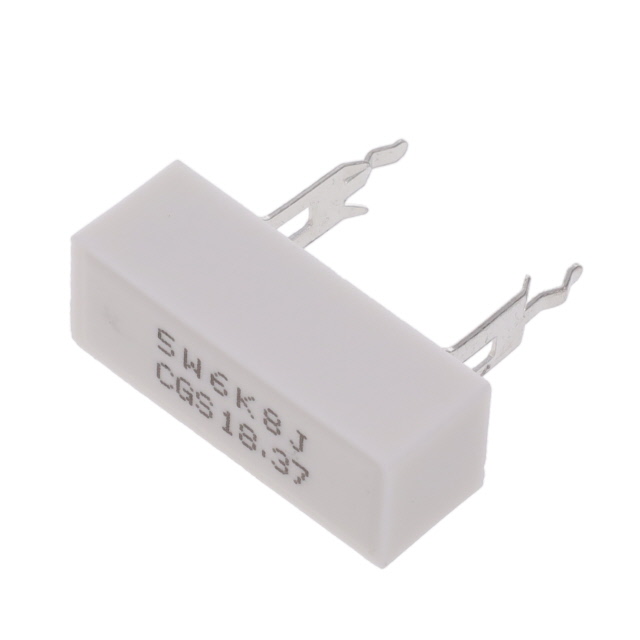

SQZR56K8J

Active

TE Connectivity Passive Product

RES 6.8K OHM 5% 5W RADIAL

Search across all available documentation for this part.

Active

TE Connectivity Passive Product

RES 6.8K OHM 5% 5W RADIAL

Technical Specifications

Parameters and characteristics for this part

Specification	SQZR56K8J

Composition	Metal Film
Features	Safety, Flame Proof, Moisture Resistant
Height - Seated (Max) [Max] [z]	11 mm
Height - Seated (Max) [Max] [z]	0.433 in
Number of Terminations	2
Operating Temperature [Max]	250 °C
Operating Temperature [Min]	-55 °C
Package / Case	Radial
Power (Watts)	5 W
Resistance	6.8 kOhms
Size / Dimension [x]	28 mm
Size / Dimension [x]	1.102 in
Size / Dimension [y]	10 mm
Size / Dimension [y]	0.394 in
Temperature Coefficient	300 ppm/°C
Tolerance	5 %

Part	Composition	Resistance	Operating Temperature [Min]	Operating Temperature [Max]	Package / Case	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Temperature Coefficient	Power (Watts)	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Number of Terminations	Features	Tolerance	Supplier Device Package
TE Connectivity Passive Product SQZR56K8J	Metal Film	6.8 kOhms	-55 °C	250 °C	Radial	28 mm	10 mm	1.102 in	0.394 in	300 ppm/°C	5 W	11 mm	0.433 in	2	Flame Proof Moisture Resistant Safety	5 %
TE Connectivity Passive Product SQZR57K5K	Metal Oxide Film	7.5 kOhms	-55 °C	250 °C	Radial	28 mm	10 mm	1.102 in	0.394 in	300 ppm/°C	5 W	11 mm	0.433 in	2	Cement Coated Flame Proof Moisture Resistant Safety	10 %	Radial Lead
TE Connectivity Passive Product SQZR5220RJ	Metal Film	220 Ohms	-55 °C	250 °C	Radial	28 mm	10 mm	1.102 in	0.394 in	300 ppm/°C	5 W	11 mm	0.433 in	2	Flame Proof Moisture Resistant Safety	5 %

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

6.8 kOhms ±5% 5W Through Hole Resistor Radial Flame Proof, Moisture Resistant, Safety Metal Film
