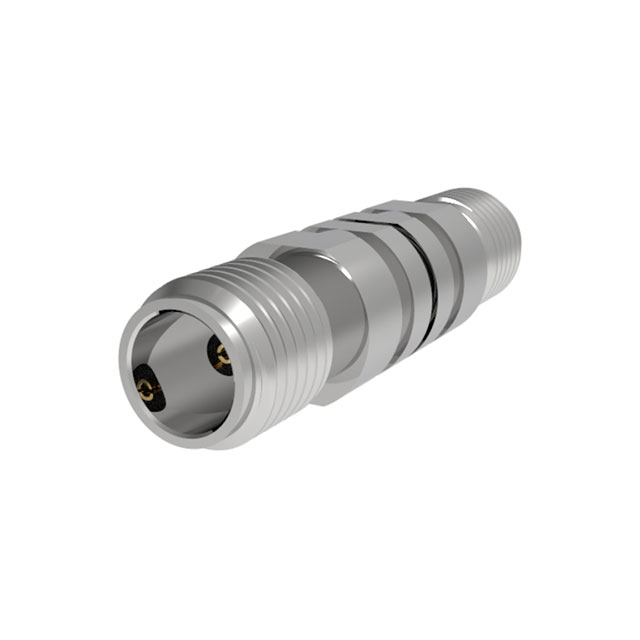

TMA-8FS-4FS-00

Active

CarlisleIT

MW ADAPTER 1.85(F) TO 2.4(F)

Search across all available documentation for this part.

Active

CarlisleIT

MW ADAPTER 1.85(F) TO 2.4(F)

Technical Specifications

Parameters and characteristics for this part

Part	Convert From (Adapter End)	Convert To (Adapter End)	Convert To (Adapter End)	Mounting Type	Frequency - Max [Max]	Conversion Type	Impedance	Adapter Series [Min]	Adapter Series [Max]	Adapter Type	Center Contact Material	Center Gender	Body Material	Style
CarlisleIT TMA-8FS-9FS-00	1.85mm Jack Female Socket	2.92 mm	OS-2.9 Jack Female Socket	Free Hanging (In-Line)	40 GHz	Between Series	50 Ohms	1.85 mm	2.92 mm	Jack to Jack	Beryllium Copper	Female to Female	Stainless Steel	Straight
CarlisleIT TMA-8FS-4MS-00	1.85mm Jack Female Socket		2.4mm (APC-2.4 OS-50) Plug Male Pin	Free Hanging (In-Line)	50 GHz	Between Series	50 Ohms			Plug to Jack	Beryllium Copper		Stainless Steel	Straight
CarlisleIT TMA-8FS-4FS-00	1.85mm Jack Female Socket	2.4 mm		Free Hanging (In-Line)	50 GHz	Between Series				Jack to Jack		Female to Female		Straight
CarlisleIT TMA-8FS-8FS-00	1.85mm Jack Female Socket		1.85mm Jack Female Socket	Free Hanging (In-Line)	65 GHz	Same Series	50 Ohms	1.85 mm	1.85 mm	Jack to Jack	Beryllium Copper	Female to Female	Stainless Steel	Straight
CarlisleIT TMA-8FS-9MS-00	1.85mm Jack Female Socket		2.92mm (OS-2.9) Plug Male Pin	Free Hanging (In-Line)	40 GHz	Between Series	50 Ohms	1.85 mm	2.92 mm	Plug to Jack	Beryllium Copper		Stainless Steel	Straight
CarlisleIT TMA-8FS-5MS-00	1.85mm Jack Female Socket			Free Hanging (In-Line)	26.5 GHz	Between Series	50 Ohms	1.85 mm	3.5 mm	Plug to Jack	Beryllium Copper		Stainless Steel	Straight

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

General part information

Adapter Coaxial Connector 1.85mm Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Jack, Female Socket
