TMA-8FS-4MS-00
ActiveCarlisleIT

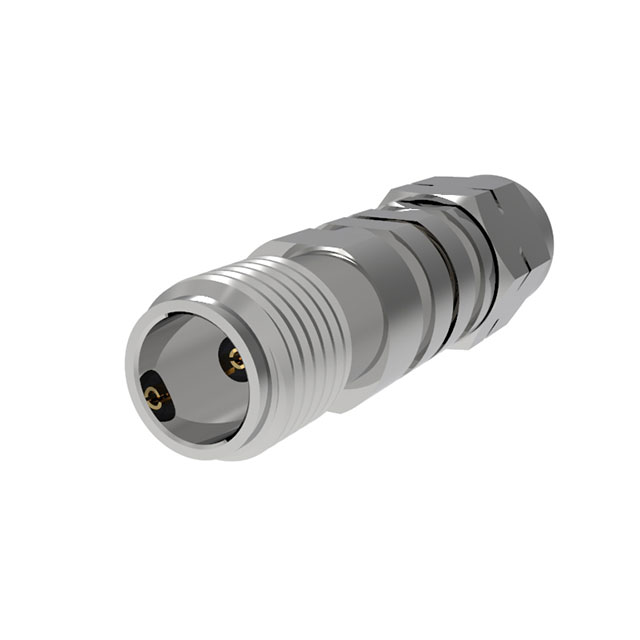

MW ADAPTER 1.85(F) TO 2.4(M)
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TMA-8FS-4MS-00
ActiveCarlisleIT
MW ADAPTER 1.85(F) TO 2.4(M)
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TMA-8FS-4MS-00 |
|---|---|
| Adapter Type | Plug to Jack |
| Body Material | Stainless Steel |
| Center Contact Material | Beryllium Copper |
| Conversion Type | Between Series |
| Convert From (Adapter End) | 1.85mm Jack, Female Socket |
| Convert To (Adapter End) | 2.4mm (APC-2.4, OS-50) Plug, Male Pin |
| Frequency - Max [Max] | 50 GHz |
| Impedance | 50 Ohms |
| Mounting Type | Free Hanging (In-Line) |
| Style | Straight |
TMA-8FS Series
| Part | Convert From (Adapter End) | Convert To (Adapter End) | Convert To (Adapter End) | Mounting Type | Frequency - Max [Max] | Conversion Type | Impedance | Adapter Series [Min] | Adapter Series [Max] | Adapter Type | Center Contact Material | Center Gender | Body Material | Style |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
CarlisleIT | 1.85mm Jack Female Socket | 2.92 mm | OS-2.9 Jack Female Socket | Free Hanging (In-Line) | 40 GHz | Between Series | 50 Ohms | 1.85 mm | 2.92 mm | Jack to Jack | Beryllium Copper | Female to Female | Stainless Steel | Straight |
CarlisleIT | 1.85mm Jack Female Socket | 2.4mm (APC-2.4 OS-50) Plug Male Pin | Free Hanging (In-Line) | 50 GHz | Between Series | 50 Ohms | Plug to Jack | Beryllium Copper | Stainless Steel | Straight | ||||
CarlisleIT | 1.85mm Jack Female Socket | 2.4 mm | Free Hanging (In-Line) | 50 GHz | Between Series | Jack to Jack | Female to Female | Straight | ||||||
CarlisleIT | 1.85mm Jack Female Socket | 1.85mm Jack Female Socket | Free Hanging (In-Line) | 65 GHz | Same Series | 50 Ohms | 1.85 mm | 1.85 mm | Jack to Jack | Beryllium Copper | Female to Female | Stainless Steel | Straight | |
CarlisleIT | 1.85mm Jack Female Socket | 2.92mm (OS-2.9) Plug Male Pin | Free Hanging (In-Line) | 40 GHz | Between Series | 50 Ohms | 1.85 mm | 2.92 mm | Plug to Jack | Beryllium Copper | Stainless Steel | Straight | ||
CarlisleIT | 1.85mm Jack Female Socket | Free Hanging (In-Line) | 26.5 GHz | Between Series | 50 Ohms | 1.85 mm | 3.5 mm | Plug to Jack | Beryllium Copper | Stainless Steel | Straight |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 67.10 | |
| 10 | $ 61.57 | |||
| 25 | $ 59.21 | |||
| 50 | $ 57.23 | |||
| 100 | $ 54.08 | |||
Description
General part information
TMA-8FS Series
Adapter Coaxial Connector 1.85mm Jack, Female Socket To 2.4mm (APC-2.4, OS-50) Plug, Male Pin 50 Ohms
