109P0412G301

Active

Sanyo Denki America Inc.

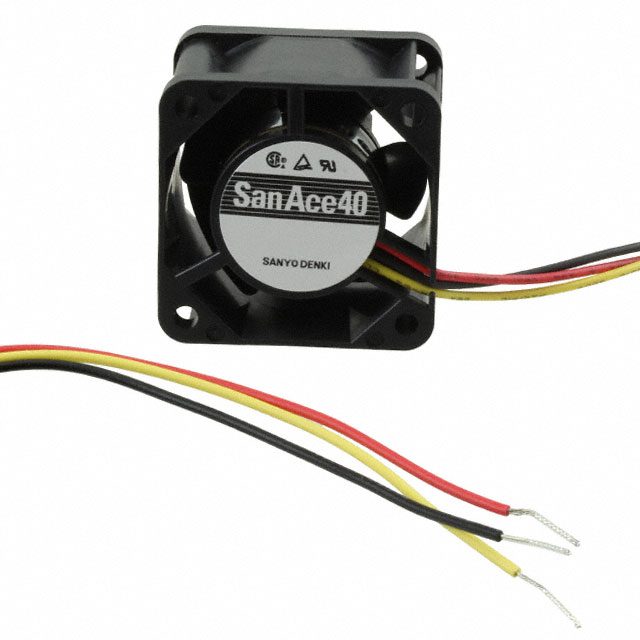

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +2

109P0412G301

Active

Sanyo Denki America Inc.

FAN AXIAL 40X28MM 12VDC WIRE

Deep-Dive with AI

DocumentsNumbering System DC Fan Handling Instructions for Fan Motors +2

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0412G301

Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Current Rating (Amps)	390 mA
Fan Type	Tubeaxial
Features	Speed Sensor (Tach), Locked Rotor Protection
Material - Blade	Plastic
Material - Frame	Plastic
Noise	42 dB
Operating Temperature [Max]	60 °C
Operating Temperature [Max]	60 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	3.72 W
RPM	11500 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	3 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.2 VDC
Voltage Range [Min]	7 V
Weight	0.115 lb
Weight	52.16 g
Width [y]	28 mm

109P0412 Series

Part	Fan Type	Air Flow	Air Flow	Width [y]	Current Rating (Amps)	Weight	Weight	Approval Agency	Termination	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Noise	Features	Voltage - Rated	Power (Watts)	RPM	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Width [x]	Lifetime @ Temp.
Sanyo Denki America Inc. 109P0412H6D01	Tubeaxial	0.224 mł/min	8 CFM	20 mm	110 mA	0.101 lb	45.81 g	CSA TUV UL	3 Wire Leads	65.7 Pa	0.264 in H2O	7 V	13.8 VDC	Ball	33 dB(A)	Locked Rotor Sensor	12 VDC	1.32 W	8000 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412K3663	Tubeaxial			28 mm	610 mA	0.115 lb	52.16 g	CSA TUV UL	3 Position Rectangular Connector			8 VDC	13.2 VDC	Ball	50 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	12 VDC		15500 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412H702	Tubeaxial	0.179 mł/min	6.4 CFM			0.071 lb	32.21 g	CSA TUV UL	2 Wire Leads	75.5 Pa	0.303 in H2O	10.2 VDC	13.8 VDC	Ball	28 dB		12 VDC	1.56 W	7700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm	15 mm
Sanyo Denki America Inc. 109P0412H3023	Tubeaxial	0.316 m³/min	11.3 CFM	28 mm	195 mA	0.115 lb	52.16 g	CSA TUV UL	2 Wire Leads	102.9 Pa	0.414 in H2O	7 V	13.8 VDC	Ball	37 dB		12 VDC	2.34 W	8700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412H7D01	Tubeaxial	0.179 mł/min	6.4 CFM			0.071 lb	32.21 g	CSA TUV UL	3 Wire Leads	75.5 Pa	0.303 in H2O	10.2 VDC	13.8 VDC	Ball	28 dB	Locked Rotor Sensor	12 VDC	1.56 W	7700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm	15 mm
Sanyo Denki America Inc. 109P0412R702	Tubeaxial	0.224 mł/min	8 CFM			0.071 lb	32.21 g	CSA TUV UL	2 Wire Leads	111.8 Pa	0.449 in H2O	7 V	13.8 VDC	Ball	34 dB(A)		12 VDC	1.56 W	9700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm	15 mm	40000 Hrs
Sanyo Denki America Inc. 109P0412G301	Tubeaxial			28 mm	390 mA	0.115 lb	52.16 g	CSA TUV UL	3 Wire Leads			7 V	13.2 VDC	Ball	42 dB	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	3.72 W	11500 RPM	Plastic	-20 °C	60 °C	-20 C	60 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412M601	Tubeaxial	0.134 m³/min	4.8 CFM	20 mm	60 mA	0.101 lb	45.81 g	CSA TUV UL	3 Wire Leads	26.4 Pa	0.106 in H2O	8 VDC	13.8 VDC	Ball	24 dB	Speed Sensor (Tach)	12 VDC	720 mW	5000 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412H701	Tubeaxial	0.179 mł/min	6.4 CFM			0.071 lb	32.21 g	CSA TUV UL	3 Wire Leads	75.5 Pa	0.303 in H2O	10.2 VDC	13.8 VDC	Ball	28 dB	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	1.56 W	7700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm	15 mm
Sanyo Denki America Inc. 109P0412J3D013	Tubeaxial	0.454 m³/min	16.2 CFM	28 mm	0.35 A	0.115 lb	52.16 g	CSA TUV UL	3 Wire Leads	210 Pa	0.843 in H2O	7 V	13.2 VDC	Ball	44 dB	Locked Rotor Sensor	12 VDC	4.2 W	12500 RPM	Plastic	-20 °C	60 °C	-20 C	60 °C	Plastic	40 mm	Square	40 mm		40000 Hrs
