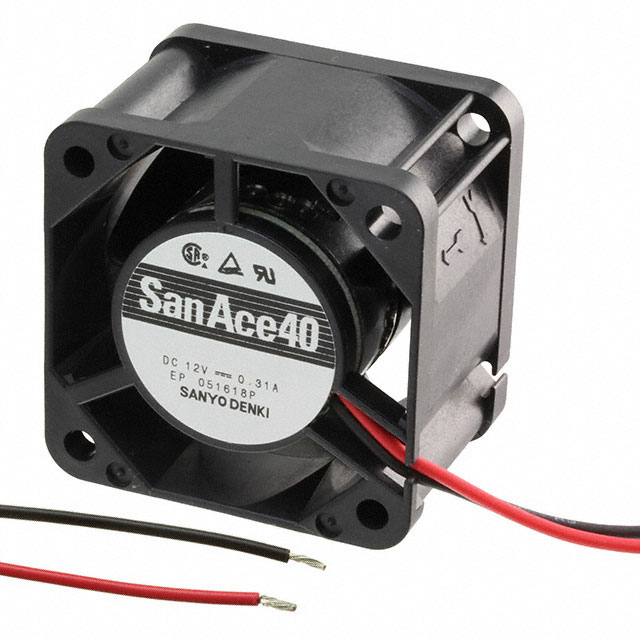

109P0412H702

Active

Sanyo Denki America Inc.

FAN AXIAL 40X15MM 12VDC WIRE

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

109P0412H702

Active

Sanyo Denki America Inc.

FAN AXIAL 40X15MM 12VDC WIRE

Deep-Dive with AI

DocumentsHandling Instructions for Fan Motors Rotor Balancing +1

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	109P0412H702

Air Flow	0.179 mł/min
Air Flow	6.4 CFM
Approval Agency	CSA, TUV, UL
Bearing Type	Ball
Fan Type	Tubeaxial
Material - Blade	Plastic
Material - Frame	Plastic
Noise	28 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
Power (Watts)	1.56 W
RPM	7700 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Static Pressure	0.303 in H2O
Static Pressure	75.5 Pa
Termination	2 Wire Leads
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	0.071 lb
Weight	32.21 g
Width [x]	15 mm

109P0412 Series

Part	Fan Type	Air Flow	Air Flow	Width [y]	Current Rating (Amps)	Weight	Weight	Approval Agency	Termination	Static Pressure	Static Pressure	Voltage Range [Min]	Voltage Range [Max]	Bearing Type	Noise	Features	Voltage - Rated	Power (Watts)	RPM	Material - Blade	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Material - Frame	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Width [x]	Lifetime @ Temp.
Sanyo Denki America Inc. 109P0412H6D01	Tubeaxial	0.224 mł/min	8 CFM	20 mm	110 mA	0.101 lb	45.81 g	CSA TUV UL	3 Wire Leads	65.7 Pa	0.264 in H2O	7 V	13.8 VDC	Ball	33 dB(A)	Locked Rotor Sensor	12 VDC	1.32 W	8000 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412K3663	Tubeaxial			28 mm	610 mA	0.115 lb	52.16 g	CSA TUV UL	3 Position Rectangular Connector			8 VDC	13.2 VDC	Ball	50 dB(A)	Locked Rotor Protection Speed Sensor (Tach)	12 VDC		15500 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412H702	Tubeaxial	0.179 mł/min	6.4 CFM			0.071 lb	32.21 g	CSA TUV UL	2 Wire Leads	75.5 Pa	0.303 in H2O	10.2 VDC	13.8 VDC	Ball	28 dB		12 VDC	1.56 W	7700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm	15 mm
Sanyo Denki America Inc. 109P0412H3023	Tubeaxial	0.316 m³/min	11.3 CFM	28 mm	195 mA	0.115 lb	52.16 g	CSA TUV UL	2 Wire Leads	102.9 Pa	0.414 in H2O	7 V	13.8 VDC	Ball	37 dB		12 VDC	2.34 W	8700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412H7D01	Tubeaxial	0.179 mł/min	6.4 CFM			0.071 lb	32.21 g	CSA TUV UL	3 Wire Leads	75.5 Pa	0.303 in H2O	10.2 VDC	13.8 VDC	Ball	28 dB	Locked Rotor Sensor	12 VDC	1.56 W	7700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm	15 mm
Sanyo Denki America Inc. 109P0412R702	Tubeaxial	0.224 mł/min	8 CFM			0.071 lb	32.21 g	CSA TUV UL	2 Wire Leads	111.8 Pa	0.449 in H2O	7 V	13.8 VDC	Ball	34 dB(A)		12 VDC	1.56 W	9700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm	15 mm	40000 Hrs
Sanyo Denki America Inc. 109P0412G301	Tubeaxial			28 mm	390 mA	0.115 lb	52.16 g	CSA TUV UL	3 Wire Leads			7 V	13.2 VDC	Ball	42 dB	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	3.72 W	11500 RPM	Plastic	-20 °C	60 °C	-20 C	60 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412M601	Tubeaxial	0.134 m³/min	4.8 CFM	20 mm	60 mA	0.101 lb	45.81 g	CSA TUV UL	3 Wire Leads	26.4 Pa	0.106 in H2O	8 VDC	13.8 VDC	Ball	24 dB	Speed Sensor (Tach)	12 VDC	720 mW	5000 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm
Sanyo Denki America Inc. 109P0412H701	Tubeaxial	0.179 mł/min	6.4 CFM			0.071 lb	32.21 g	CSA TUV UL	3 Wire Leads	75.5 Pa	0.303 in H2O	10.2 VDC	13.8 VDC	Ball	28 dB	Locked Rotor Protection Speed Sensor (Tach)	12 VDC	1.56 W	7700 RPM	Plastic	-20 °C	70 °C	-20 C	70 °C	Plastic	40 mm	Square	40 mm	15 mm
Sanyo Denki America Inc. 109P0412J3D013	Tubeaxial	0.454 m³/min	16.2 CFM	28 mm	0.35 A	0.115 lb	52.16 g	CSA TUV UL	3 Wire Leads	210 Pa	0.843 in H2O	7 V	13.2 VDC	Ball	44 dB	Locked Rotor Sensor	12 VDC	4.2 W	12500 RPM	Plastic	-20 °C	60 °C	-20 C	60 °C	Plastic	40 mm	Square	40 mm		40000 Hrs

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 13.10
		10	$ 12.50
		25	$ 11.76
		50	$ 11.31
		180	$ 10.42
		360	$ 9.75
		540	$ 9.60

Description

General part information

109P0412 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 6.4 CFM (0.179m³/min) 2 Wire Leads
