0348302003
ActiveMolex

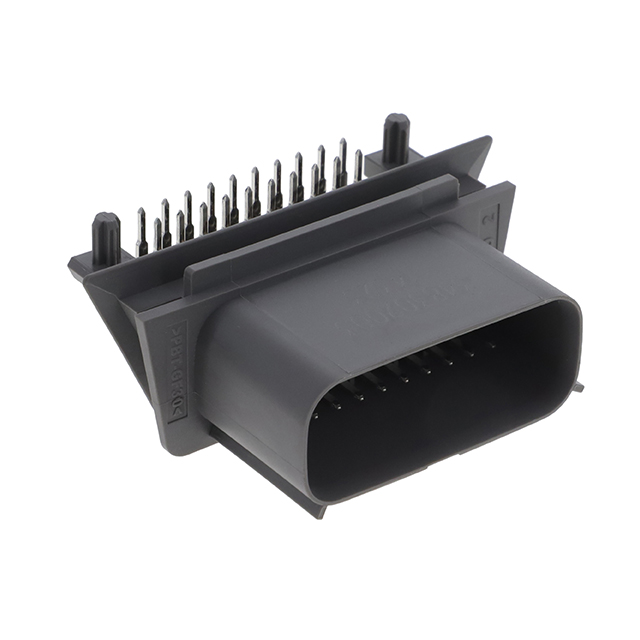

MX150 RA HDR 2X10 ST DKGY KEY C
Deep-Dive with AI
Search across all available documentation for this part.
0348302003
ActiveMolex
MX150 RA HDR 2X10 ST DKGY KEY C
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0348302003 |
|---|---|
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Blade |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Insulation Color | Gray |
| Insulation Height | 0.996 " |
| Insulation Height | 25.29 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.138 in |
| Pitch - Mating | 3.5 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.96 | |
| 10 | $ 6.76 | |||
| 25 | $ 6.34 | |||
| 50 | $ 6.04 | |||
| 100 | $ 5.75 | |||
| 300 | $ 5.32 | |||
| 600 | $ 5.07 | |||
| 1200 | $ 4.82 | |||
Description
General part information
034830 Series
Connector Header Through Hole, Right Angle 20 position 0.138" (3.50mm)
Documents
Technical documentation and resources
No documents available
