0348302002
ActiveMolex

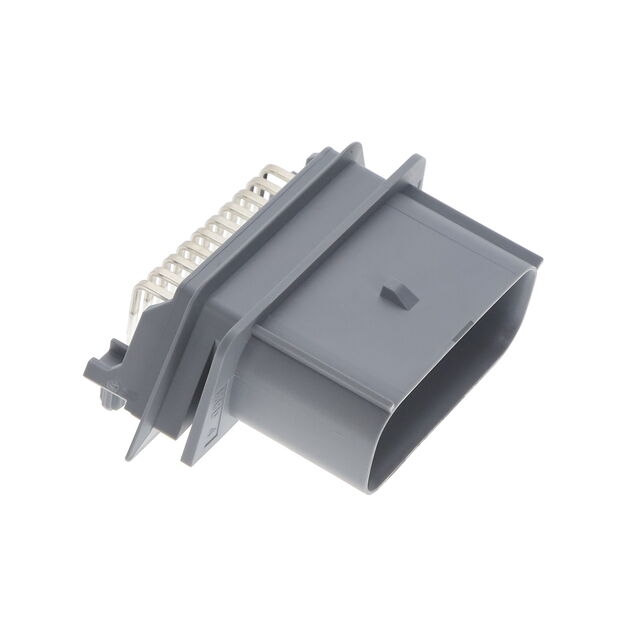

CONN HEADER R/A 20POS 3.5MM
Deep-Dive with AI
Search across all available documentation for this part.
0348302002
ActiveMolex
CONN HEADER R/A 20POS 3.5MM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 0348302002 |
|---|---|
| Applications | Automotive |
| Connector Type | Header |
| Contact Finish - Post | Tin |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Blade |
| Fastening Type | Locking Ramp |
| Features | Board Guide |
| Ingress Protection | IP69K, IP67 |
| Insulation Color | Gray |
| Insulation Height | 0.996 " |
| Insulation Height | 25.29 mm |
| Insulation Material | Polybutylene Terephthalate (PBT), Glass Filled |
| Mounting Type | Through Hole, Right Angle |
| Number of Positions | 20 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.138 in |
| Pitch - Mating | 3.5 mm |
| Row Spacing - Mating | 0.138 in |
| Row Spacing - Mating | 3.5 mm |
| Shrouding | Shrouded - 4 Wall |
| Style | Board to Cable/Wire |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.16 | |
| 10 | $ 8.83 | |||
| 80 | $ 7.29 | |||
| 1200 | $ 6.05 | |||
Description
General part information
034830 Series
Connector Header Through Hole, Right Angle 20 position 0.138" (3.50mm)
