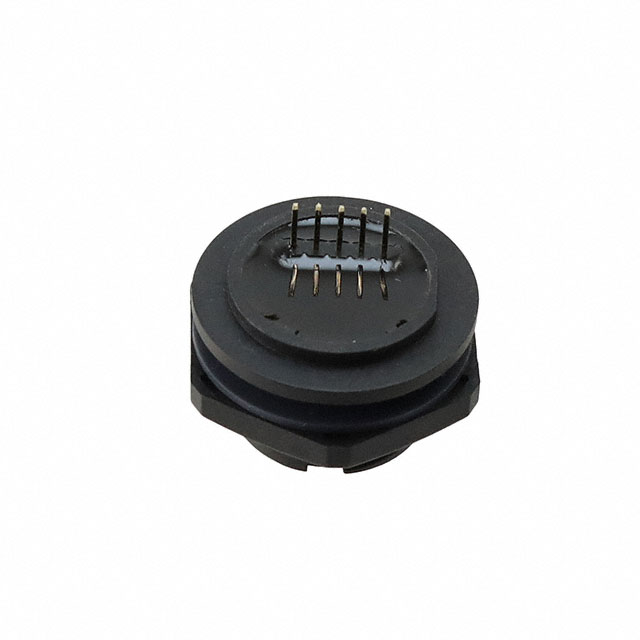

MRU-AF41-1000

Active

Amphenol ICC (Commercial Products)

HARSH MRU CONNECTOR, PANEL MOUNT

Search across all available documentation for this part.

Active

Amphenol ICC (Commercial Products)

HARSH MRU CONNECTOR, PANEL MOUNT

Technical Specifications

Parameters and characteristics for this part

Specification	MRU-AF41-1000

Connector Type	USB-A (USB TYPE-A)
Contact Finish	Gold
Current Rating (Amps)	1.5 A
Features	Circular Bayonet Coupling
Gender	Receptacle
Ingress Protection	IP67/IP68 - Dust Tight, Waterproof
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	1500
Mounting Feature	Bulkhead - Front Side Nut
Mounting Type	Through Hole, Panel Mount
Number of Contacts [custom]	4
Number of Ports	1
Shell/Shielding Material	Stainless, Steel
Shielding	Shielded
Specifications	USB 2.0
Termination	Solder

Part	Features	Gender	Number of Contacts [custom]	Termination	Current Rating (Amps)	Ingress Protection	Connector Type	Mounting Type	Specifications	Insulation Color	Shell/Shielding Material	Contact Finish	Shielding	Number of Ports	Mating Cycles	Material Flammability Rating	Length	Length	Transfer Rate	Color	Wire Gauge	Configuration	Mounting Feature
Amphenol ICC (Commercial Products) MRU-AM21-4000	Circular Bayonet Coupling	Plug	4	Terminal Block	1.5 A	IP67/IP68 - Dust Tight Waterproof	USB-A (USB TYPE-A)	Free Hanging (In-Line)	USB 2.0	Black	Stainless Steel	Gold	Shielded	1	1500	UL94 V-0
Amphenol ICC (Commercial Products) MRU-AF41-2020	Data Transfer and Charge Industrial Environments - IP67/IP68 Panel Mount								USB 2.0				Shielded				0.66 ft	200 mm	480 Mbps	Black	24 AWG 28 AWG	A Female to Cable Round (Circular Coupling)
Amphenol ICC (Commercial Products) MRU-AF41-1000	Circular Bayonet Coupling	Receptacle	4	Solder	1.5 A	IP67/IP68 - Dust Tight Waterproof	USB-A (USB TYPE-A)	Panel Mount Through Hole	USB 2.0	Black	Stainless Steel	Gold	Shielded	1	1500	UL94 V-0							Bulkhead - Front Side Nut

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

USB-A (USB TYPE-A) USB 2.0 Receptacle Connector 4 Position Panel Mount, Through Hole
