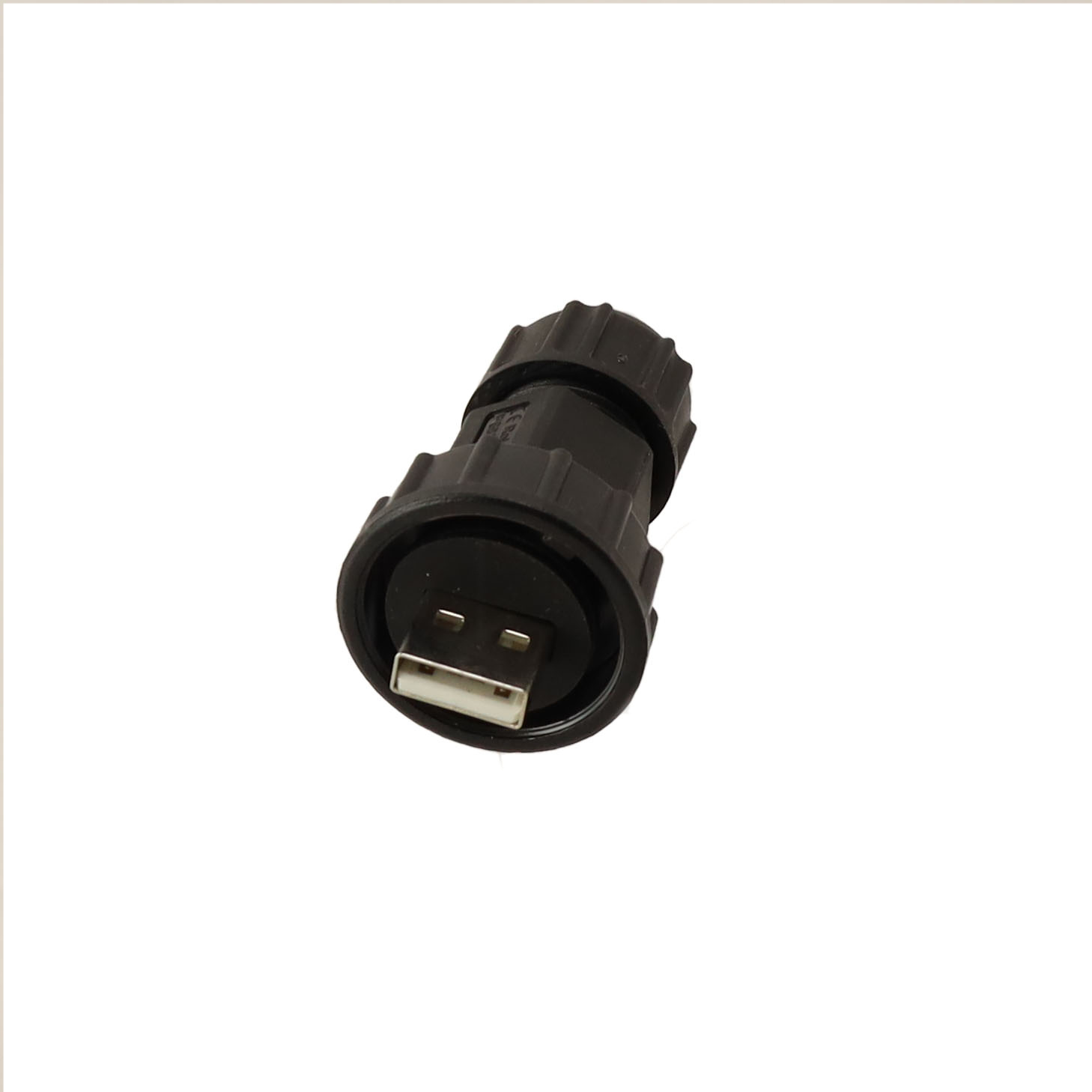

MRU-AM21-4000
ActiveAmphenol ICC (Commercial Products)
HARSH MRU CONNECTOR, BAYONET LOC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MRU-AM21-4000
ActiveAmphenol ICC (Commercial Products)
HARSH MRU CONNECTOR, BAYONET LOC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MRU-AM21-4000 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Features | Circular Bayonet Coupling |
| Gender | Plug |
| Ingress Protection | IP67/IP68 - Dust Tight, Waterproof |
| Insulation Color | Black |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Contacts [custom] | 4 |
| Number of Ports | 1 |
| Shell/Shielding Material | Stainless, Steel |
| Shielding | Shielded |
| Specifications | USB 2.0 |
| Termination | Terminal Block |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 7.87 | |
| 10 | $ 6.03 | |||
| 25 | $ 5.45 | |||
| 50 | $ 5.05 | |||
| 100 | $ 4.69 | |||
| 250 | $ 4.27 | |||
| 500 | $ 4.09 | |||
Description
General part information
MRU Series
USB-A (USB TYPE-A) USB 2.0 Plug Connector 4 Position Free Hanging (In-Line)
