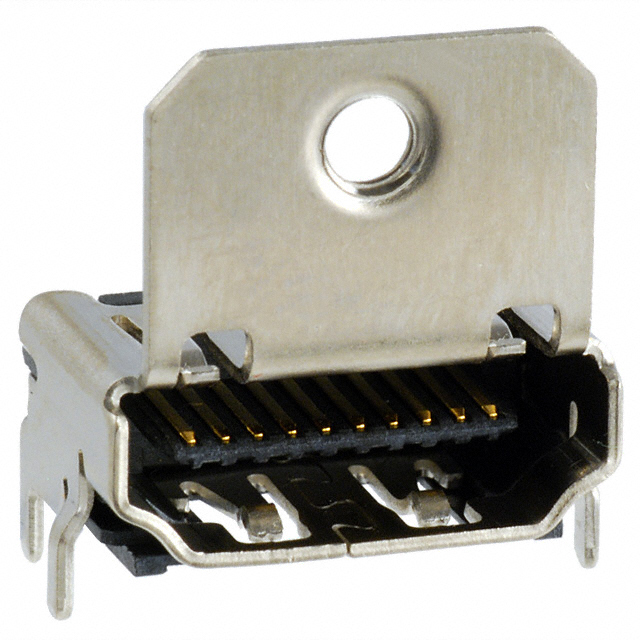

10029449-002RLF - 10029449-002xLF

10029449-002RLF

Active
Amphenol ICC (FCI)

CONN RCPT 1.4 HDMI 19POS SMD R/A

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheethdmi product presentation new Other Related Document+1
10029449-002RLF - 10029449-002xLF

10029449-002RLF

Active
Amphenol ICC (FCI)

CONN RCPT 1.4 HDMI 19POS SMD R/A

Deep-Dive with AI

DocumentsDatasheethdmi product presentation new Other Related Document+1

Technical Specifications

Parameters and characteristics for this part

Specification10029449-002RLF
Connector TypeHDMI
Contact FinishGXT™, Gold
Current Rating (Amps)0.5 A
GenderReceptacle
Insulation ColorBlack
Material Flammability RatingUL94 V-0
Mating Cycles10000
Mounting FeatureFlange, Horizontal
Mounting TypeThrough Hole, Surface Mount, Right Angle
Number of Contacts [custom]19
Number of Ports1
Operating Temperature [Max]85 °C
Operating Temperature [Min]-20 C
Shell/Shielding MaterialSteel
ShieldingShielded
SpecificationsHDMI 1.4
TerminationSolder
Voltage - Rated40 V

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyCut Tape (CT) 1$ 4.44
10$ 3.39
25$ 3.06
50$ 2.83
100$ 2.63
Digi-Reel® 1$ 4.44
10$ 3.39
25$ 3.06
50$ 2.83
100$ 2.63
Tape & Reel (TR) 200$ 2.44
400$ 2.27
600$ 2.18
1000$ 2.07
1400$ 2.00
2000$ 1.93
5000$ 1.80

Description

General part information

10029449 Series

HDMI HDMI 1.4 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
