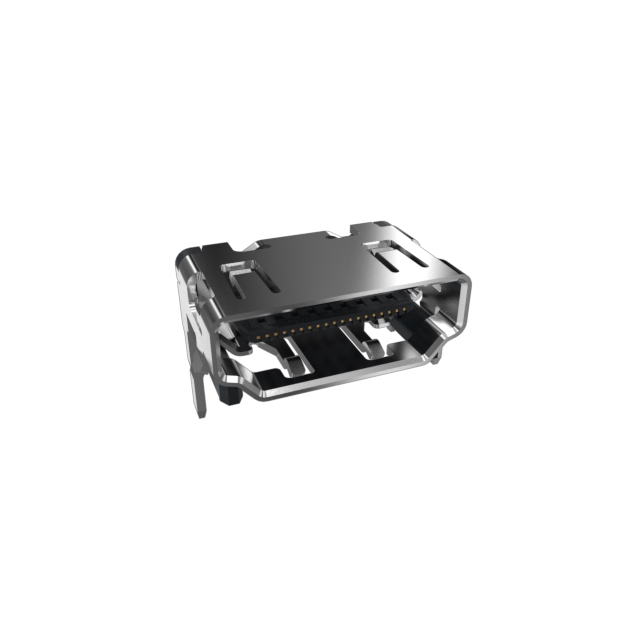

10029449-113RLF

Active

Amphenol ICC (FCI)

CONN RCPT 1.4 HDMI 19POS SMD R/A

Search across all available documentation for this part.

Active

Amphenol ICC (FCI)

CONN RCPT 1.4 HDMI 19POS SMD R/A

Technical Specifications

Parameters and characteristics for this part

Specification	10029449-113RLF

Connector Type	HDMI
Contact Finish	Gold
Current Rating (Amps)	0.5 A
Gender	Receptacle
Insulation Color	Black
Material Flammability Rating	UL94 V-0
Mating Cycles	10000
Mounting Feature	Horizontal
Mounting Type	Through Hole, Surface Mount, Right Angle
Number of Contacts [custom]	19
Number of Ports	1
Operating Temperature [Max]	85 °C
Operating Temperature [Min]	-20 C
Shell/Shielding Material	Brass
Shielding	Shielded
Specifications	HDMI 1.4
Termination	Solder
Voltage - Rated	40 V

Part	Contact Finish	Mating Cycles	Material Flammability Rating	Connector Type	Mounting Feature	Gender	Operating Temperature [Max]	Operating Temperature [Min]	Number of Ports	Termination	Shielding	Specifications	Insulation Color	Features	Voltage - Rated	Number of Contacts [custom]	Current Rating (Amps)	Mounting Type	Shell/Shielding Material
Amphenol ICC (FCI) 10029449-112RLF	Gold	10000	UL94 V-0	HDMI	Flange Horizontal	Receptacle	85 °C	-20 C	1	Solder	Shielded	HDMI 1.4	Black	Board Guide	40 V	19	0.5 A	Through Hole Right Angle
Amphenol ICC (FCI) 10029449-101TLF	Gold	10000	UL94 V-0	HDMI	Horizontal	Receptacle	85 °C	-20 C	1	Solder	Shielded	HDMI 1.4	Black		40 V	19	0.5 A	Surface Mount Right Angle Through Hole	Steel
Amphenol ICC (FCI) 10029449-002RLF	Gold GXT™	10000	UL94 V-0	HDMI	Flange Horizontal	Receptacle	85 °C	-20 C	1	Solder	Shielded	HDMI 1.4	Black		40 V	19	0.5 A	Surface Mount Right Angle Through Hole	Steel
Amphenol ICC (FCI) 10029449-111RLF	Gold	10000	UL94 V-0	HDMI	Horizontal	Receptacle	85 °C	-20 C	1	Solder	Shielded	HDMI 1.4	Black		40 V	19	0.5 A	Surface Mount Right Angle Through Hole	Brass
Amphenol ICC (FCI) 10029449-113RLF	Gold	10000	UL94 V-0	HDMI	Horizontal	Receptacle	85 °C	-20 C	1	Solder	Shielded	HDMI 1.4	Black		40 V	19	0.5 A	Surface Mount Right Angle Through Hole	Brass

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

HDMI HDMI 1.4 Receptacle Connector 19 Position Surface Mount, Right Angle; Through Hole
