0190710178

Active

Molex

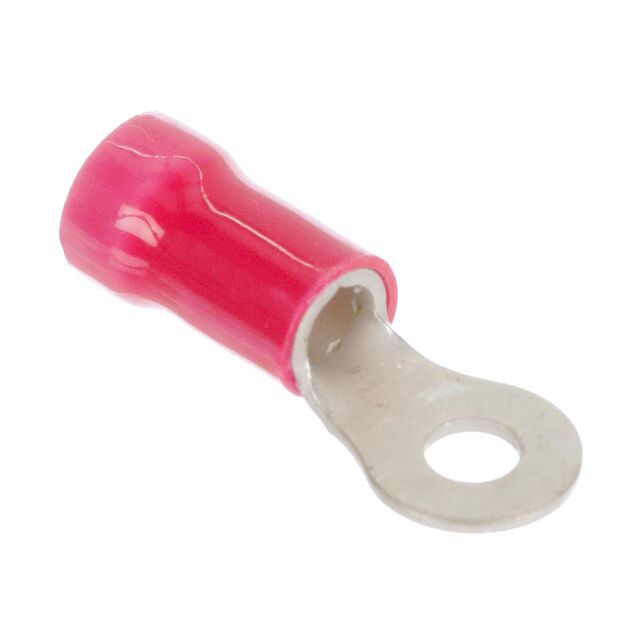

CONN RING CIRC 8AWG #8 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec

0190710178

Active

Molex

CONN RING CIRC 8AWG #8 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet Insulkrimp Rings, Spades Prod Spec

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190710178

Color	Red
Contact Finish	Tin
Contact Material	Copper
Features	Brazed Seam
Insulation	Insulated
Insulation Diameter [diameter]	0.31 "
Insulation Diameter [diameter]	7.87 mm
Length - Overall [x]	32.26 mm
Length - Overall [x]	1.27 in
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	8 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	0.045 in
Thickness	1.14 mm
Width - Outer Edges [y]	9.5 mm
Width - Outer Edges [y]	0.374 in
Wire Gauge	8 AWG

019071 Series

Part	Insulation	Mounting Type	Thickness	Thickness	Features	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Contact Material	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Color	Contact Finish	Terminal Type	Stud/Tab Size	Termination	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]
Molex 0190710134	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	8.38 mm	0.33 in	0.468 in	11.89 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	33.3 mm	1.311 "	Red	Tin	Circular	8 Stud	Crimp
Molex 0190710144	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	8.38 mm	0.33 in	0.468 in	11.89 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	33.3 mm	1.311 "	Red	Tin	Circular		Crimp	0.3125 Stud
Molex 0190710312	Insulated	Free Hanging (In-Line)	0.083 in	2.1 mm	Brazed Seam	18.67 mm	0.735 in			Poly-Vinyl Chloride (PVC)	Copper		67.41 mm	2.654 in	Yellow	Electro-Tin	Circular		Crimp	0.3125 Stud	0.948 in	24.08 mm
Molex 0190710219	Insulated	Free Hanging (In-Line)	0.05 in	50 mils		11.18 mm	0.44 in			Poly-Vinyl Chloride (PVC)	Copper Alloy	6 AWG	40.54 mm	1.596 in	Blue	Electro-Tin	Circular	8 Stud	Crimp		0.485 "	12.32 mm
Molex 0190710192	Insulated	Free Hanging (In-Line)	0.05 in	50 mils		11.18 mm	0.44 in			Poly-Vinyl Chloride (PVC)	Copper Alloy	6 AWG	42.34 mm	1.667 in	Blue	Electro-Tin	Circular		Crimp	0.25 Stud	0.638 in	16.21 mm
Molex 0190710223	Insulated	Free Hanging (In-Line)	0.05 in	50 mils		11.18 mm	0.44 in			Poly-Vinyl Chloride (PVC)	Copper Alloy	6 AWG	40.54 mm	1.596 in	Blue	Electro-Tin	Circular		Crimp	10 Stud	0.485 "	12.32 mm
Molex 0190710149	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	7.87 mm	0.31 "	0.583 in	14.81 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	36.32 mm	1.43 in	Red	Tin	Circular		Crimp	0.25 Stud
Molex 0190710176	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	7.87 mm	0.31 "	0.374 in	9.5 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	32.26 mm	1.27 in	Red	Tin	Circular		Crimp	6 Stud
Molex 0190710305	Insulated	Free Hanging (In-Line)	0.075 in	1.91 mm	Brazed Seam	17.27 mm	0.68 in	0.807 "	20.5 mm	Poly-Vinyl Chloride (PVC)	Copper	44 AWG	66.54 mm	2.62 in	Blue	Electro-Tin	Circular	3/8 Stud	Crimp
Molex 0190710178	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	7.87 mm	0.31 "	0.374 in	9.5 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	32.26 mm	1.27 in	Red	Tin	Circular	8 Stud	Crimp
