0190710223

Active

Molex

CONN RING CIRC 6AWG #10 CRIMP

Deep-Dive with AI

Search across all available documentation for this part.

Documents0190440069 Drawing/Datasheet

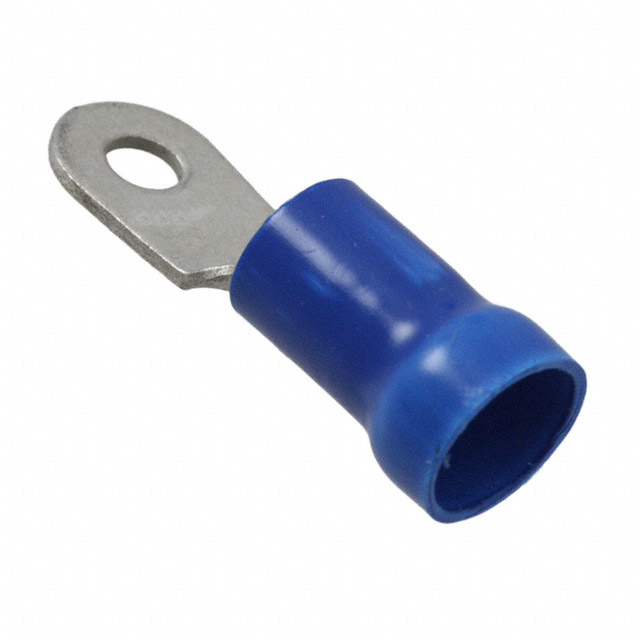

0190710223

Active

Molex

CONN RING CIRC 6AWG #10 CRIMP

Deep-Dive with AI

Documents0190440069 Drawing/Datasheet

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	0190710223

Color	Blue
Contact Finish	Electro-Tin
Contact Material	Copper Alloy
Insulation	Insulated
Insulation Diameter [diameter]	11.18 mm
Insulation Diameter [diameter]	0.44 in
Length - Overall [x]	1.596 in
Length - Overall [x]	40.54 mm
Material - Insulation	Poly-Vinyl Chloride (PVC)
Mounting Type	Free Hanging (In-Line)
Stud/Tab Size	10 Stud
Terminal Type	Circular
Termination	Crimp
Thickness	50 mils
Thickness	0.05 in
Width - Outer Edges [x]	0.485 "
Width - Outer Edges [x]	12.32 mm
Wire Gauge	6 AWG

019071 Series

Part	Insulation	Mounting Type	Thickness	Thickness	Features	Insulation Diameter [diameter]	Insulation Diameter [diameter]	Width - Outer Edges [y]	Width - Outer Edges [y]	Material - Insulation	Contact Material	Wire Gauge	Length - Overall [x]	Length - Overall [x]	Color	Contact Finish	Terminal Type	Stud/Tab Size	Termination	Stud/Tab Size	Width - Outer Edges [x]	Width - Outer Edges [x]
Molex 0190710134	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	8.38 mm	0.33 in	0.468 in	11.89 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	33.3 mm	1.311 "	Red	Tin	Circular	8 Stud	Crimp
Molex 0190710144	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	8.38 mm	0.33 in	0.468 in	11.89 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	33.3 mm	1.311 "	Red	Tin	Circular		Crimp	0.3125 Stud
Molex 0190710312	Insulated	Free Hanging (In-Line)	0.083 in	2.1 mm	Brazed Seam	18.67 mm	0.735 in			Poly-Vinyl Chloride (PVC)	Copper		67.41 mm	2.654 in	Yellow	Electro-Tin	Circular		Crimp	0.3125 Stud	0.948 in	24.08 mm
Molex 0190710219	Insulated	Free Hanging (In-Line)	0.05 in	50 mils		11.18 mm	0.44 in			Poly-Vinyl Chloride (PVC)	Copper Alloy	6 AWG	40.54 mm	1.596 in	Blue	Electro-Tin	Circular	8 Stud	Crimp		0.485 "	12.32 mm
Molex 0190710192	Insulated	Free Hanging (In-Line)	0.05 in	50 mils		11.18 mm	0.44 in			Poly-Vinyl Chloride (PVC)	Copper Alloy	6 AWG	42.34 mm	1.667 in	Blue	Electro-Tin	Circular		Crimp	0.25 Stud	0.638 in	16.21 mm
Molex 0190710223	Insulated	Free Hanging (In-Line)	0.05 in	50 mils		11.18 mm	0.44 in			Poly-Vinyl Chloride (PVC)	Copper Alloy	6 AWG	40.54 mm	1.596 in	Blue	Electro-Tin	Circular		Crimp	10 Stud	0.485 "	12.32 mm
Molex 0190710149	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	7.87 mm	0.31 "	0.583 in	14.81 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	36.32 mm	1.43 in	Red	Tin	Circular		Crimp	0.25 Stud
Molex 0190710176	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	7.87 mm	0.31 "	0.374 in	9.5 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	32.26 mm	1.27 in	Red	Tin	Circular		Crimp	6 Stud
Molex 0190710305	Insulated	Free Hanging (In-Line)	0.075 in	1.91 mm	Brazed Seam	17.27 mm	0.68 in	0.807 "	20.5 mm	Poly-Vinyl Chloride (PVC)	Copper	44 AWG	66.54 mm	2.62 in	Blue	Electro-Tin	Circular	3/8 Stud	Crimp
Molex 0190710178	Insulated	Free Hanging (In-Line)	0.045 in	1.14 mm	Brazed Seam	7.87 mm	0.31 "	0.374 in	9.5 mm	Poly-Vinyl Chloride (PVC)	Copper	8 AWG	32.26 mm	1.27 in	Red	Tin	Circular	8 Stud	Crimp
