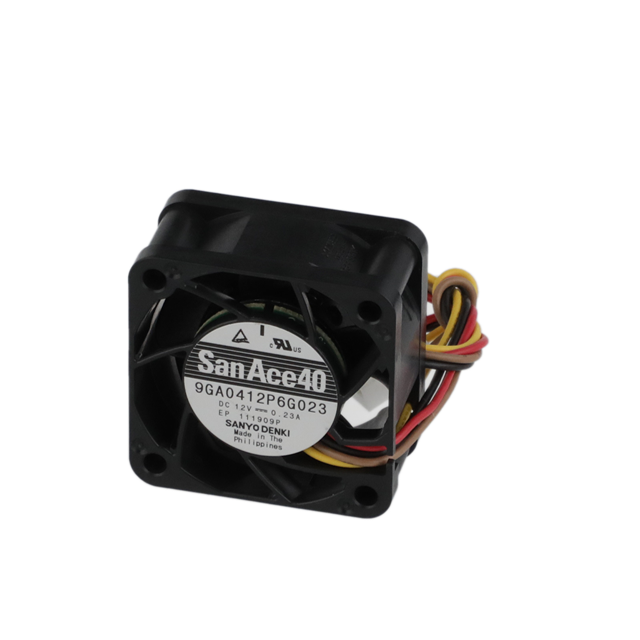

9GA0412P6G023

Active

Sanyo Denki America Inc.

FAN AXL 40X20MM 12VDC RECT CONN

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheet Handling Instructions for Fan Motors

9GA0412P6G023

Active

Sanyo Denki America Inc.

FAN AXL 40X20MM 12VDC RECT CONN

Deep-Dive with AI

DocumentsDatasheet Handling Instructions for Fan Motors

Specifications Pricing Series Description Documents

Technical Specifications

Parameters and characteristics for this part

Specification	9GA0412P6G023

Bearing Type	Ball
Current Rating (Amps)	0.23 A
Fan Type	Tubeaxial
Features	Locked Rotor Protection, PWM Control, Speed Sensor (Tach)
Material - Blade	Plastic
Material - Frame	Plastic
Noise	47 dB
Operating Temperature [Max]	70 °C
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 °C
Operating Temperature [Min]	-20 C
RPM	16000 RPM
Size / Dimension	Square
Size / Dimension [x]	40 mm
Size / Dimension [z]	40 mm
Termination	4 Position Rectangular Connector
Voltage - Rated	12 VDC
Voltage Range [Max]	13.8 VDC
Voltage Range [Min]	10.2 VDC
Weight	0.078 lb
Weight	35.38 g
Width [y]	20 mm

9GA0412 Series

Part	Width [x]	Size / Dimension [z]	Size / Dimension	Size / Dimension [x]	Material - Blade	RPM	Static Pressure	Static Pressure	Approval Agency	Termination	Features	Lifetime @ Temp.	Bearing Type	Voltage Range [Min]	Voltage Range [Max]	Material - Frame	Fan Type	Noise	Weight	Weight	Current Rating (Amps)	Operating Temperature [Min]	Operating Temperature [Max]	Operating Temperature [Min]	Operating Temperature [Max]	Voltage - Rated	Lifetime @ Temp.	Air Flow	Air Flow	Power (Watts)	Width [y]
Sanyo Denki America Inc. 9GA0412G7D001	15 mm	40 mm	Square	40 mm	Plastic	13100 RPM	191.8 Pa	0.77 in H2O	CSA TUV UL	3 Wire Leads	Locked Rotor Sensor	Varies Based on Temperature	Ball	7 V	13.8 VDC	Plastic	Tubeaxial	42 dB	28.12 g	0.062 lb	0.17 A	-20 °C	70 °C	-20 C	70 °C	12 VDC
Sanyo Denki America Inc. 9GA0412J3011		40 mm	Square	40 mm	Plastic	18000 RPM	535 Pa	2.15 in H2O	CSA TUV UL	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	54 dB	53.07 g	0.117 lb	490 mA	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.664 m³/min	23.7 CFM	5.88 W	28 mm
Sanyo Denki America Inc. 9GA0412P3M01		40 mm	Square	40 mm	Plastic	12500 RPM	258 Pa	1.04 in H2O	CSA TUV UL	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	47 dB	53.07 g	0.117 lb	0.21 A	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.454 m³/min	16.2 CFM	2.52 W	28 mm
Sanyo Denki America Inc. 9GA0412H302		40 mm	Square	40 mm	Plastic	14500 RPM	346.2 Pa	1.39 in H2O	CSA TUV UL	2 Wire Leads			Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	50 dB(A)	53.07 g	0.117 lb	0.28 A	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.535 mł/min	19.1 CFM	3.36 W	28 mm
Sanyo Denki America Inc. 9GA0412P3G011		40 mm	Square	40 mm	Plastic	16500 RPM	450.8 Pa	1.81 in H2O	CSA TUV UL	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	53 dB	53.07 g	0.117 lb	390 mA	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.602 m³/min	21.5 CFM		28 mm
Sanyo Denki America Inc. 9GA0412H3D011		40 mm	Square	40 mm	Plastic	14500 RPM	346.2 Pa	1.39 in H2O	CSA TUV UL	3 Wire Leads	Locked Rotor Sensor		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	50 dB(A)	53.07 g	0.117 lb	0.28 A	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.535 mł/min	19.1 CFM	3.36 W	28 mm
Sanyo Denki America Inc. 9GA0412H6001		40 mm	Square	40 mm	Plastic	12400 RPM	191.8 Pa	0.77 in H2O	CSA TUV UL	3 Wire Leads	Locked Rotor Protection Speed Sensor (Tach)		Ball	10.2 VDC	13.8 VDC	Plastic	Tubeaxial	40 dB(A)	35.38 g	0.078 lb	140 mA	-20 °C	70 °C	-20 C	70 °C	12 VDC		0.328 mł/min	11.7 CFM	1.68 W	20 mm
Sanyo Denki America Inc. 9GA0412P6F001		40 mm	Square	40 mm	Plastic	8000 RPM	79.5 Pa	0.319 in H2O	CSA TUV UL	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.2 VDC	13.8 VDC	Plastic	Tubeaxial	28 dB	34.93 g	0.077 lb		-20 °C	70 °C	-20 C	70 °C	12 VDC		0.207 mł/min	7.4 CFM		20 mm
Sanyo Denki America Inc. 9GA0412P3K011		40 mm	Square	40 mm	Plastic	22000 RPM	800 Pa	3.21 in H2O	CSA TUV UL	4 Wire Leads	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.8 VDC	13.2 VDC	Plastic	Tubeaxial	61 dB(A)	53.07 g	0.117 lb	920 mA	-20 °C	70 °C	-20 C	70 °C	12 VDC	40000 Hrs	0.801 m³/min	28.6 CFM	11.04 W	28 mm
Sanyo Denki America Inc. 9GA0412P6G023		40 mm	Square	40 mm	Plastic	16000 RPM				4 Position Rectangular Connector	Locked Rotor Protection PWM Control Speed Sensor (Tach)		Ball	10.2 VDC	13.8 VDC	Plastic	Tubeaxial	47 dB	35.38 g	0.078 lb	0.23 A	-20 °C	70 °C	-20 C	70 °C	12 VDC					20 mm

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Box	1	$ 17.39
		10	$ 16.60
		25	$ 15.61
		70	$ 15.02
		140	$ 13.83
		280	$ 12.94
		560	$ 12.74

Description

General part information

9GA0412 Series

Fan Tubeaxial 12VDC Square - 40mm L x 40mm H Ball 4 Position Rectangular Connector
